10127721-241LF

Overview

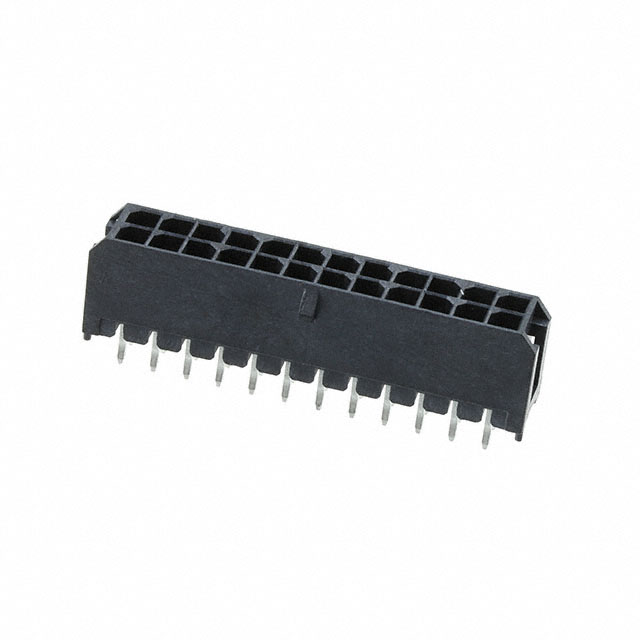

The Amphenol ICC (FCI) part number 10127721-241LF is a Minitek Power 3.0 series power-to-board header connector. It features a double row configuration with 24 positions and a 3 mm pitch. The contacts are gold-plated copper pins designed for through-hole vertical mounting. Rated for 8.5 A current and 600 VAC, it operates within a temperature range of -40°C to +105°C. The natural-colored housing provides insulation resistance of 1 GOhm.

Feature Summary

• Double-row vertical header design for high-density power distribution
• Gold-plated copper contacts ensure reliable conductivity and corrosion resistance
• Through-hole termination supports secure board attachment
• Natural LCP housing offers thermal stability and UL94 V-0 flammability rating

Applications

• Server and storage system power distribution
• Telecommunications equipment backplanes
• Industrial control board interconnects
• High-current power supply modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating and pin count. Ensure the selected variant matches the required current rating and operating temperature range for the target application. Confirm availability status as factory special order items may have extended lead times.

Selection Notes

Select this component when a 24-position double-row header is required for power applications. Verify that the 3 mm pitch aligns with the PCB layout constraints. Ensure the through-hole mounting style is compatible with the assembly process and that the 8.5 A rating meets the circuit requirements.

Part Context

This connector belongs to the Minitek Power 3.0 family, engineered for robust power delivery in demanding environments. The series utilizes liquid crystal polymer for superior heat resistance and dimensional stability. It complements matching sockets and cable assemblies within the same ecosystem.

Replacement Considerations

No public confirmed substitute part numbers are available.
