10127721-242LF

Overview

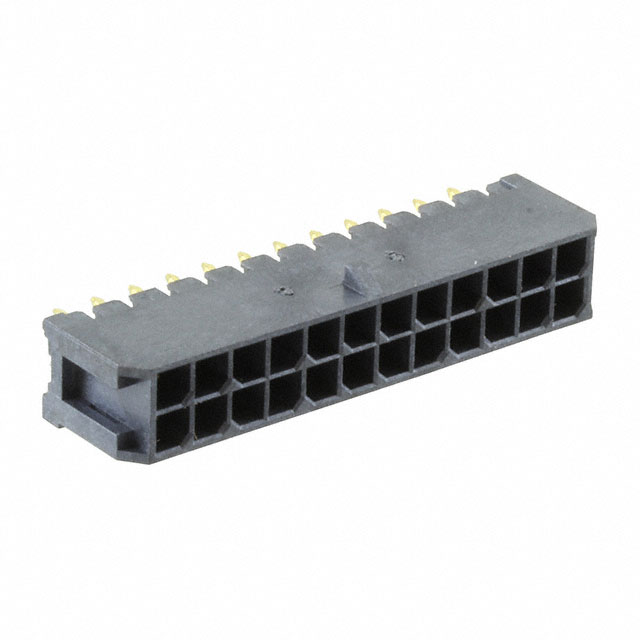

The Amphenol ICC (FCI) part number 10127721-242LF is a Minitek Pwr 3.0 series power-to-board header connector. It features a dual row configuration with 24 positions and a 3 mm pitch. The contacts are male pins made of copper with gold plating, rated for 8.5 A current. Designed for vertical surface mounting, the unit operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhm.

Feature Summary

• Dual-row vertical header design for board-to-board power distribution
• Gold-plated copper contacts ensure reliable electrical conductivity
• High current rating supports demanding power delivery requirements

Applications

• Server and storage equipment power distribution
• Telecommunications infrastructure boards
• Industrial control system power interfaces

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm contact plating thickness and material specifications. Ensure compatibility with mating sockets from the same Minitek Pwr 3.0 family. Confirm that the vertical through-hole termination style matches the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a high-current, dual-row power interface is required for vertical mounting applications. The 3 mm pitch provides robust spacing for significant current carrying capacity compared to finer pitches. Verify that the 8.5 A rating aligns with the circuit load and that the operating temperature range meets environmental constraints.

Part Context

This connector belongs to the Minitek Pwr 3.0 product line manufactured by Amphenol ICC (FCI). The series is engineered for power distribution in dense electronic assemblies. It complements other components in the ecosystem, such as compatible housings and crimp terminals, to form complete interconnect solutions for industrial and data communication hardware.

Replacement Considerations

Direct replacement requires verifying identical pin count, pitch, and current rating. Compatible alternatives must match the dual-row vertical header configuration and gold-plated contact specifications to ensure mechanical fit and electrical performance continuity in existing designs.

FAQ

What is the current rating for this connector?

The connector has a current rating of 8.5 A per contact.

Does this part include a housing?

This part number refers specifically to the header contacts; separate housing components are typically required for assembly.
