10127819-04211PLF

Overview

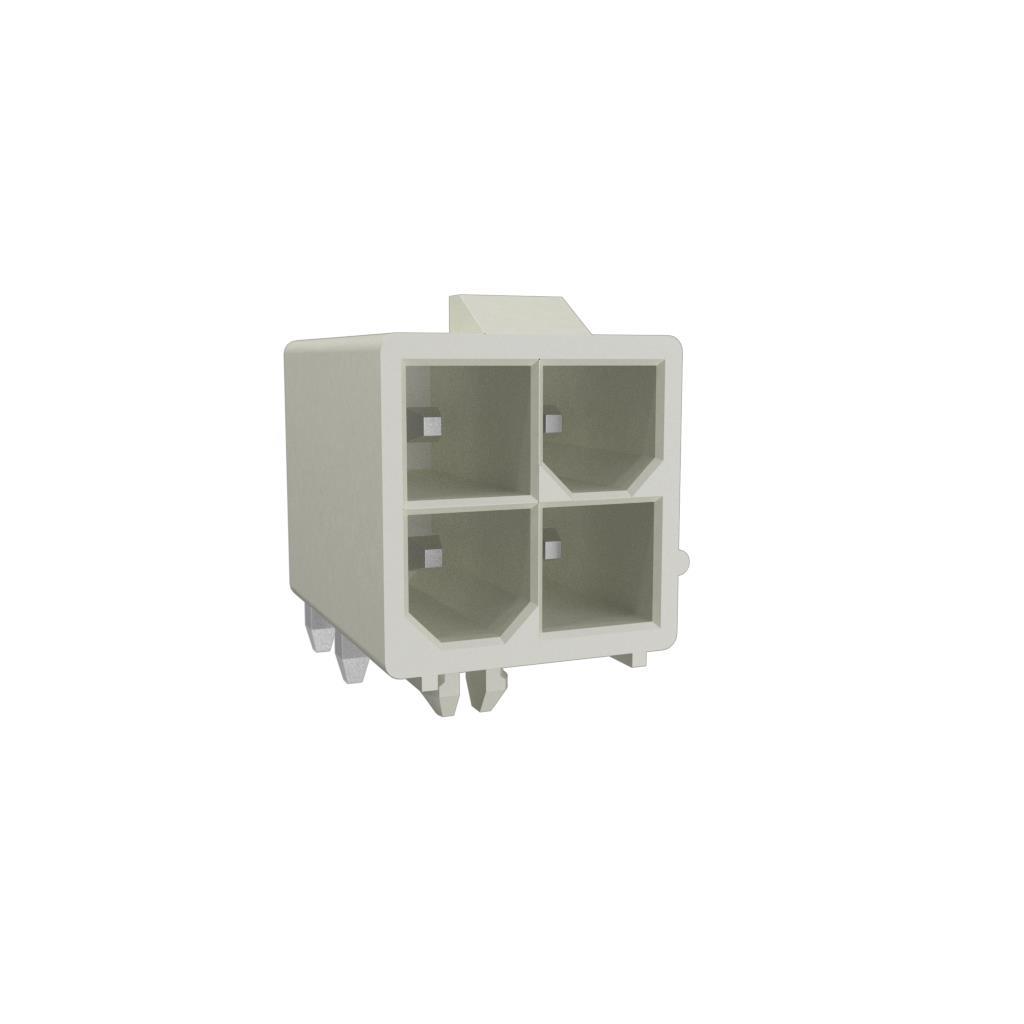

The Amphenol ICC (FCI) part number 10127819-04211PLF is a Minitek Pwr 4.2 series power connector header designed for wire-to-board applications. It features a right-angle, through-hole mounting style with double-row configuration and four positions. The connector utilizes a 4.2mm pitch and includes a shrouded housing with a four-wall design to ensure proper alignment and safety. Contact materials are brass with gold plating, supporting high-current power distribution in electronic systems.

Feature Summary

• Right-angle through-hole mounting for compact board integration
• Shrouded four-wall housing for secure mating and alignment
• Gold-plated brass contacts for reliable conductivity
• Double-row configuration within the Minitek Pwr 4.2 system

Applications

• Power distribution in industrial control panels
• Server and storage equipment internal connections
• Communication infrastructure power modules
• High-current circuit board interconnects

Procurement Notes

Verify the specific ordering suffix 'P' indicates the required plating and housing configuration against the official datasheet. Confirm that the right-angle orientation matches the PCB layout requirements. Ensure compatibility with the corresponding Minitek Pwr 4.2 mating connectors. Check for any recent PCN updates regarding material changes or manufacturing location shifts before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-current power connection is required in a space-constrained environment. The right-angle design facilitates efficient cable routing perpendicular to the board edge. The shrouded housing prevents misalignment during insertion. Verify that the 4.2mm pitch accommodates the available trace spacing on the target PCB design.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, engineered for robust power delivery in demanding electronic environments. The series is characterized by its ability to handle significant current loads while maintaining a compact footprint. It is widely utilized in sectors requiring reliable power interfaces, such as data centers and telecommunications hardware, ensuring stable performance under thermal and mechanical stress.

Replacement Considerations

Direct substitutes must match the 4.2mm pitch, double-row, right-angle, and 4-position specifications. Verify that alternative headers share the same shrouded housing design and contact plating characteristics to maintain electrical and mechanical compatibility.
