Product Detailed Parameters
- Description：CONN PWR4.2 RA HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

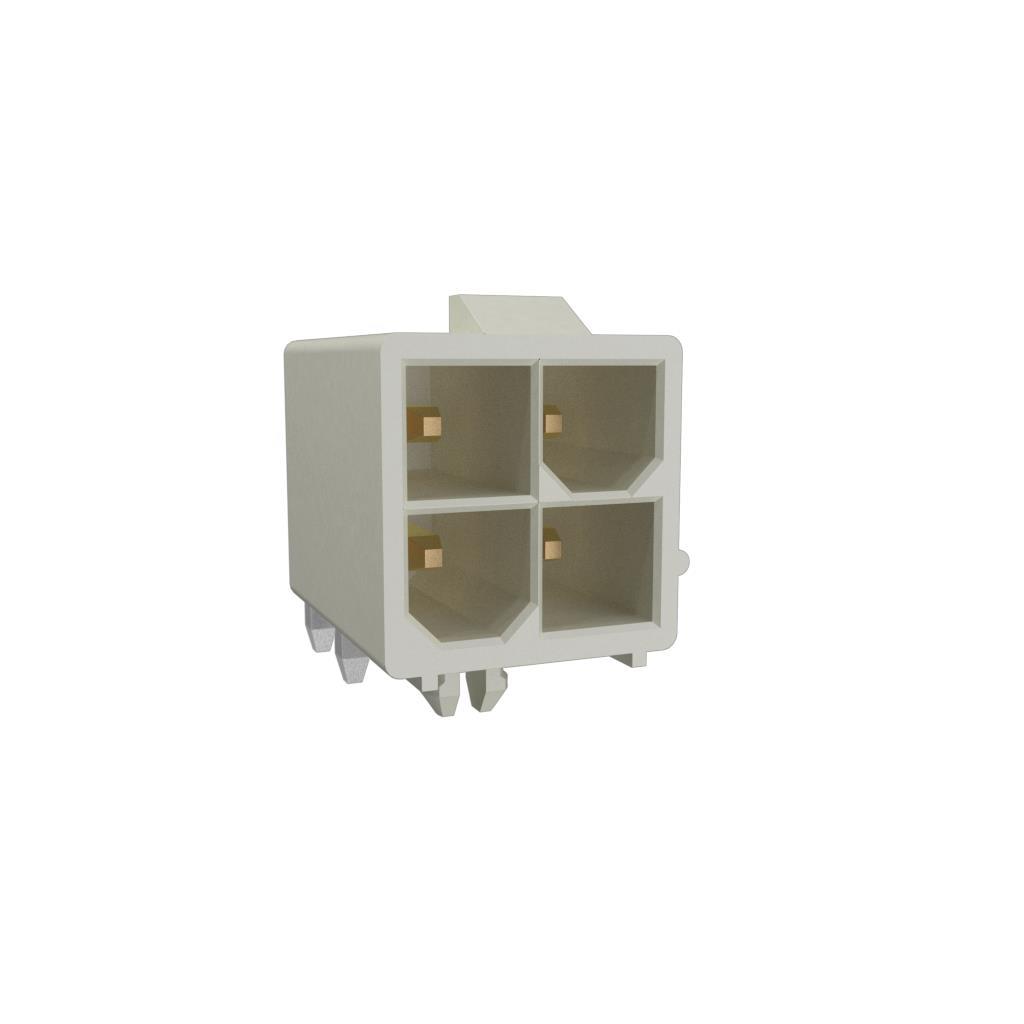

The Amphenol ICC (FCI) part number 10127819-04411PLF is a Minitek Pwr 4.2 series board connector header. It features a right-angle, through-hole mounting style with four positions arranged in a dual-row configuration. The mating pitch is 0.165 inches (4.20mm). The contacts are brass with gold plating, housed in natural polyamide insulation rated UL94 V-0. This component supports power distribution applications requiring reliable electrical connections.
Feature Summary
- Right-angle through-hole design for space-efficient PCB integration
- Gold-plated brass contacts ensure durable and low-resistance connections
- Dual-row configuration provides compact power routing capabilities
Applications
- Power distribution in server and storage equipment
- Communication device internal interconnects
- Industrial control system power headers
Procurement Notes
Verify the specific ordering suffix to confirm contact plating thickness and material composition. Ensure the selected variant matches the required current rating and voltage specifications for the target application. Confirm RoHS compliance status if restricted substances are a concern for the manufacturing process.
Selection Notes
Select this connector when a low-profile, right-angle power header is required. The 4.20mm pitch allows for higher current capacity compared to smaller signal connectors. Consider the housing height and locking mechanism requirements to ensure compatibility with the mating cable or board assembly.
Part Context
This component belongs to the Minitek Pwr 4.2 family, designed for high-current power delivery. It complements other headers and receptacles within the same series to create complete interconnect solutions. The system is engineered for robust performance in demanding electronic environments.
Replacement Considerations
Compatible substitutes include other 4-position, 4.20mm pitch right-angle headers from the Minitek Pwr 4.2 series. Verify that any alternative part maintains identical pin count, pitch, and mounting orientation before implementation.
