10127819-0612GLF

Overview

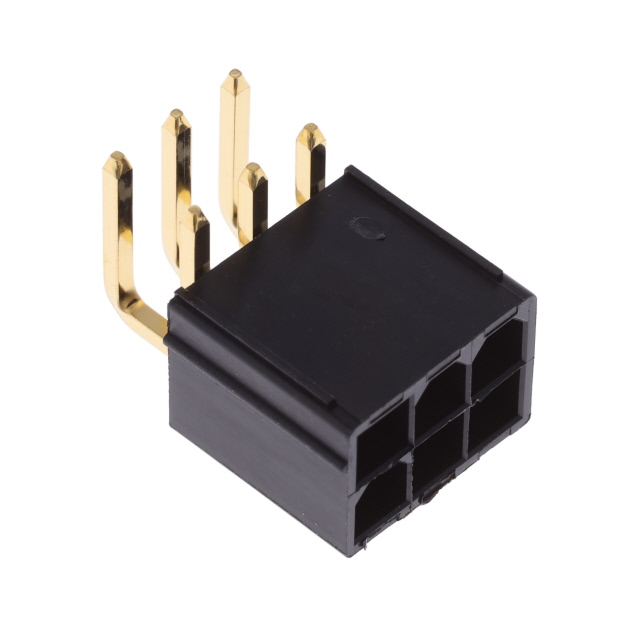

The Amphenol ICC (FCI) 10127819-0612GLF is a Minitek Power4.2 series power-to-board header connector designed for high-current applications. It features a 6-position, double-row configuration with a 4.2 mm pitch and right-angle through-hole mounting. The contacts are gold-plated brass pins rated for 9 A current and 600 VAC voltage. Operating within a temperature range of -40°C to +105°C, the unit utilizes a black nylon housing and solder pin termination.

Feature Summary

• Gold-plated brass contacts ensure reliable conductivity and corrosion resistance in power distribution circuits.
• Right-angle through-hole design facilitates efficient board layout and secure mechanical attachment.
• High insulation resistance supports stable performance under demanding electrical conditions.

Applications

• Power distribution modules
• Server and storage equipment backplanes
• Industrial control systems

Procurement Notes

Verify the specific suffix GLF indicates lead-free compliance and gold plating as documented. Confirm that the 6-position count matches the required circuit density. Ensure the right-angle orientation aligns with the PCB assembly constraints. Cross-reference the 4.2 mm pitch against mating connector specifications to guarantee compatibility.

Selection Notes

Select this component when a robust, high-current power connection is required in a compact form factor. The 4.2 mm pitch allows for significant current carrying capacity compared to finer pitches. The right-angle configuration aids in managing cable strain and optimizing vertical space on the printed circuit board.

Part Context

This part belongs to the Minitek Power4.2 family, engineered for durable power interconnects. The series is characterized by its ability to handle substantial electrical loads while maintaining structural integrity. It serves as a critical interface between power sources and main circuit boards in heavy-duty electronic assemblies.

Replacement Considerations

Compatible substitutes include other Minitek Power4.2 headers with identical 6-position counts and right-angle mounting. Verify that alternative parts maintain the same 4.2 mm pitch and gold contact finish to ensure interchangeability without redesigning the footprint.

FAQ

What is the maximum operating temperature for this connector?

The connector is rated for operation up to +105°C.

Does this model support surface mount installation?

No, this specific model is designed exclusively for through-hole solder pin termination.
