Product Detailed Parameters
- Description：CONN HEADER R/A 6POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

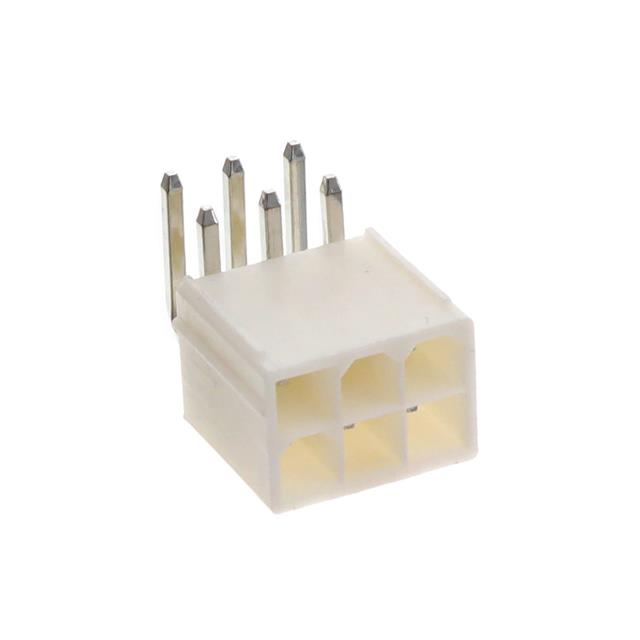

The Amphenol ICC (FCI) 10127819-06211LF is a Minitek® Pwr 4.2 series header connector designed for power applications. It features a 6-position, 2-row configuration with a 0.165" (4.20mm) mating pitch. The unit utilizes through-hole, right-angle mounting and solder termination. Constructed with brass contacts featuring tin plating and PA66 insulation, it supports a rated voltage of 600V and operates within a temperature range of -40°C to 105°C.
Feature Summary
- Provides flexible power solutions via the Minitek Pwr 4.2 system
- Features a four-wall shielded housing for enhanced protection
- Utilizes square contact shapes for secure mating
Applications
- Power distribution in electronic systems
- Board-to-cable or board-to-wire connections
- High-current circuit interconnections
Procurement Notes
Verify the specific suffix 'LF' indicates lead-free compliance and confirm the exact pin count matches project requirements. Ensure the right-angle orientation aligns with PCB layout constraints. Cross-reference the manufacturer part number against official distributor catalogs to confirm current availability and standard lead times before finalizing procurement plans.
Selection Notes
Select this component when a low-profile, high-current header is required for power delivery. The 4.20mm pitch accommodates heavier gauge wires compared to standard signal connectors. Consider the 600V rating and 105°C thermal limit to ensure compatibility with the target application's electrical and environmental demands.
Part Context
This connector belongs to the Minitek® Pwr 4.2 family, engineered for robust power handling. The series offers various position counts and configurations to support diverse power distribution needs. It integrates reliable locking mechanisms and durable materials suitable for industrial and commercial electronics environments.
Replacement Considerations
Compatible substitutes include other Minitek Pwr 4.2 headers with matching 6-position, 2-row specifications. Verify that alternative parts maintain the same 4.20mm pitch, right-angle orientation, and through-hole termination style to ensure mechanical and electrical interchangeability.
