10127819-0621GLF

Overview

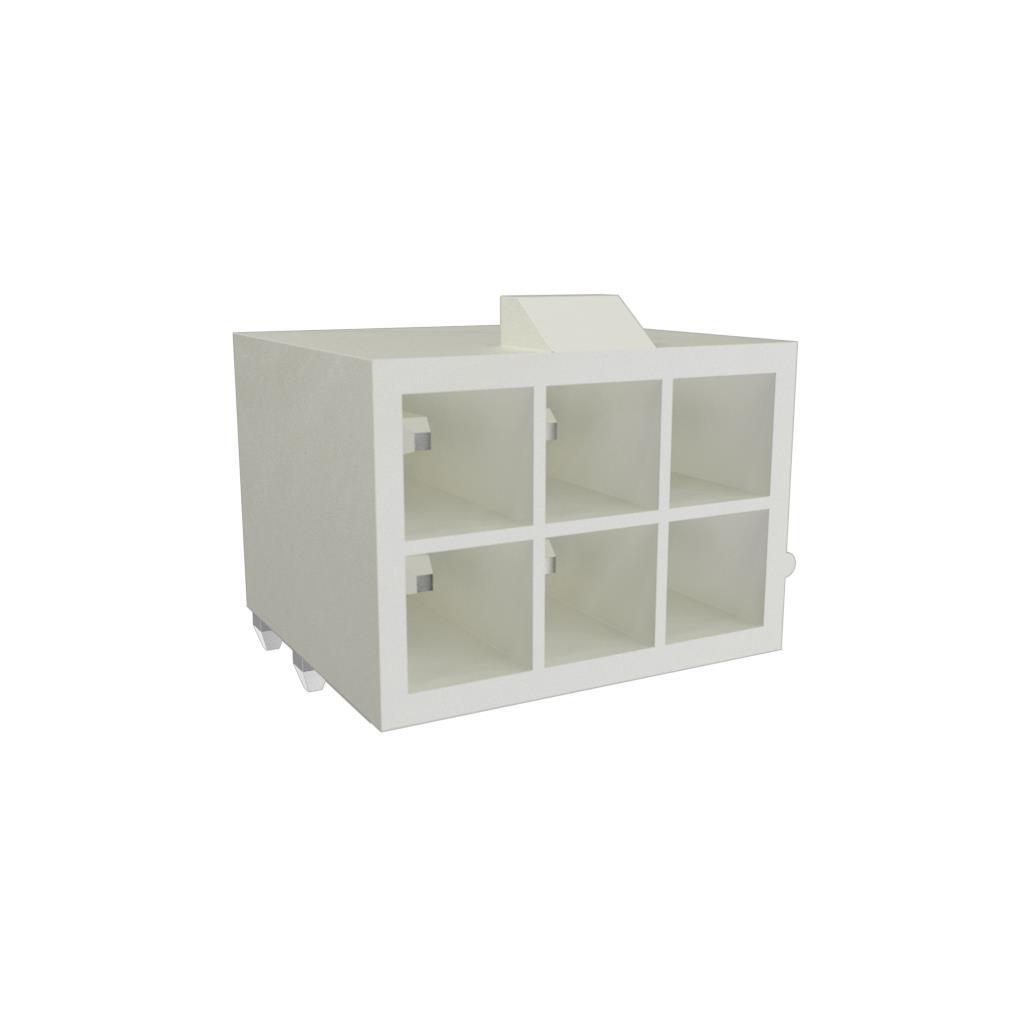

The Amphenol ICC (FCI) 10127819-0621GLF is a Power to the Board header connector from the Minitek Pwr 4.2 series. It features a 6-position, 2-row configuration with a 4.2 mm pitch and right-angle through-hole mounting. Rated for 9 A current and 600 VAC voltage, it utilizes brass pins with tin plating and a natural nylon housing. The unit operates within a temperature range of -40°C to +105°C and includes board guide features for alignment.

Feature Summary

• Right-angle through-hole design for space-efficient PCB integration
• High current carrying capacity suitable for power distribution applications
• Board guide features ensure precise mating alignment
• Tin-plated contacts provide reliable electrical connection

Applications

• Power distribution in server and storage systems
• Industrial equipment power supply connections
• Telecommunications infrastructure power boards
• General-purpose high-current board-to-wire interfaces

Procurement Notes

Verify that the specific application environment does not require shielding or grounding features, as this model lacks shielded contact cavities. Confirm compatibility with mating receptacles by checking pin dimensions and row spacing against system requirements. Ensure soldering processes align with the thermal specifications of the nylon insulation and tin-plated terminals to maintain long-term reliability.

Selection Notes

Select this component when a low-profile, high-current power connection is required without electromagnetic interference shielding needs. Compare against other Minitek Pwr 4.2 variants if different position counts or housing colors are necessary. Consider the right-angle orientation for vertical stacking constraints. Validate that the 4.2 mm pitch matches the target PCB footprint and mating hardware specifications.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, designed for robust power delivery in compact electronic assemblies. The series offers various position options and mounting styles to support diverse power distribution architectures. Manufactured by Amphenol ICC (FCI), these connectors emphasize durability and consistent performance in demanding industrial and data center environments.

Replacement Considerations

Compatible substitutes include other 6-position, 4.2 mm pitch headers from the same Minitek Pwr 4.2 series, such as 10127819-1411GLF for higher position counts or 10127819-0612GLF for black housing variants. Verify mechanical fit and electrical ratings before substitution.
