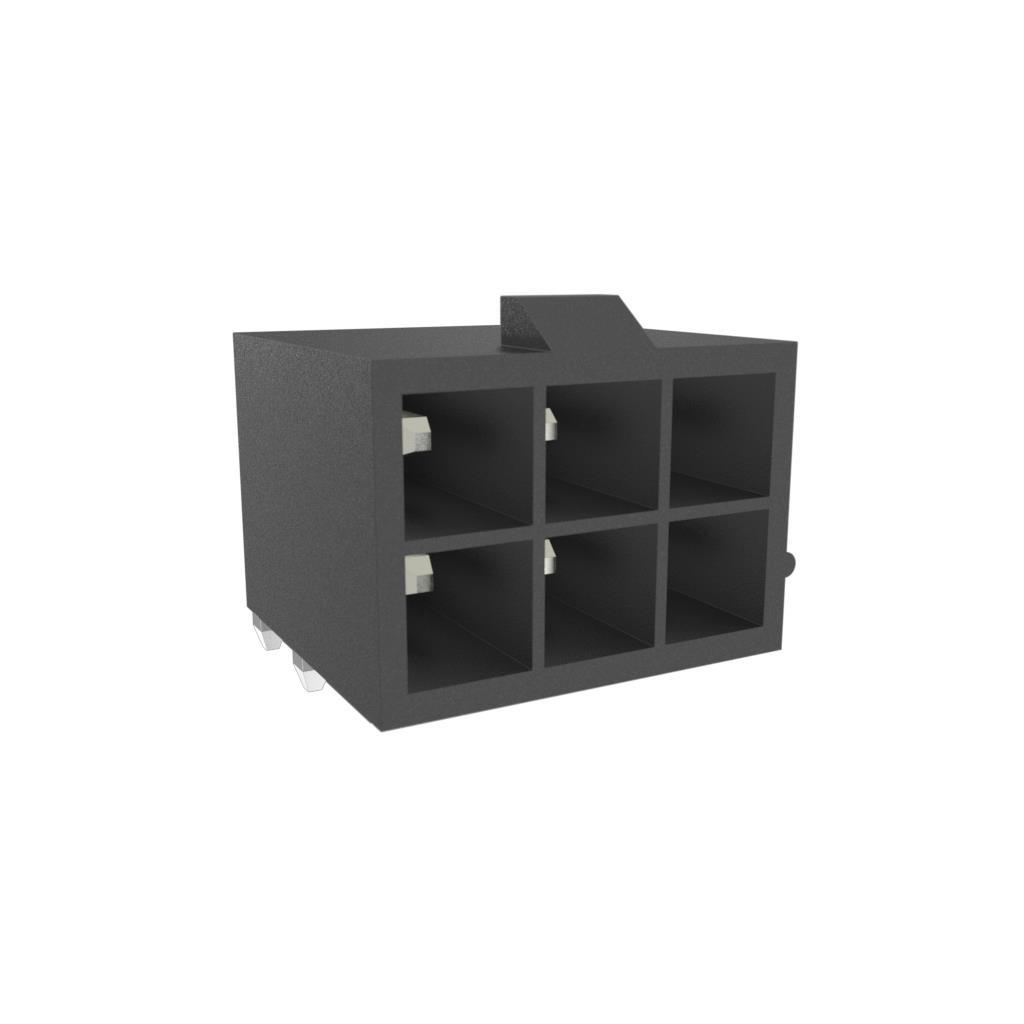

10127819-06221LF

$0.32

Description：CONN HEADER R/A 6POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:db9185c9e344 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 6POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.386" (9.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10127819-06221LF

Overview

The Amphenol ICC (FCI) part number 10127819-06221LF is a Minitek Power4.2 series header connector designed for power to board applications. It features a double row configuration with six positions and a 4.2 mm pitch. The connector utilizes right-angle through-hole termination for secure PCB mounting. Contact materials consist of brass with gold plating, ensuring reliable conductivity and corrosion resistance. The housing is constructed from black insulating material rated for operation between -40°C and +105°C. This component supports high current ratings suitable for server and storage equipment power distribution.

Feature Summary

Double row header design optimized for power delivery in compact spaces
Right-angle through-hole mounting facilitates efficient board layout
Gold-plated brass contacts provide durable electrical connections
High-temperature resistant housing ensures stability in demanding environments

Applications

Server power distribution systems
Storage device internal connectivity
Communication equipment power interfaces
Industrial control board power supply

Procurement Notes

Verify the specific suffix against official Amphenol documentation to confirm contact plating thickness and material composition. Ensure the right-angle orientation matches the mechanical constraints of the target assembly. Confirm that the six-position count aligns with the required circuit paths. Check for RoHS compliance status if environmental regulations apply to the final product deployment.

Selection Notes

Select this connector when a low-profile power interface with right-angle entry is required. The 4.2 mm pitch allows for higher current capacity compared to smaller pitches. Verify that the PCB footprint accommodates the double-row spacing. Consider thermal management requirements given the operating temperature range. Ensure mating connectors match the pin count and gender specifications.

Part Context

This component belongs to the Minitek Power4.2 family, a line of board-to-board and power-to-board connectors by Amphenol FCI. The series is engineered for high-current applications in data centers and industrial sectors. Similar parts in the series vary by position count and termination style. The Minitek brand emphasizes reliability and ease of assembly for power distribution networks.
