Product Detailed Parameters
- Description：CONN PWR4.2 RA HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

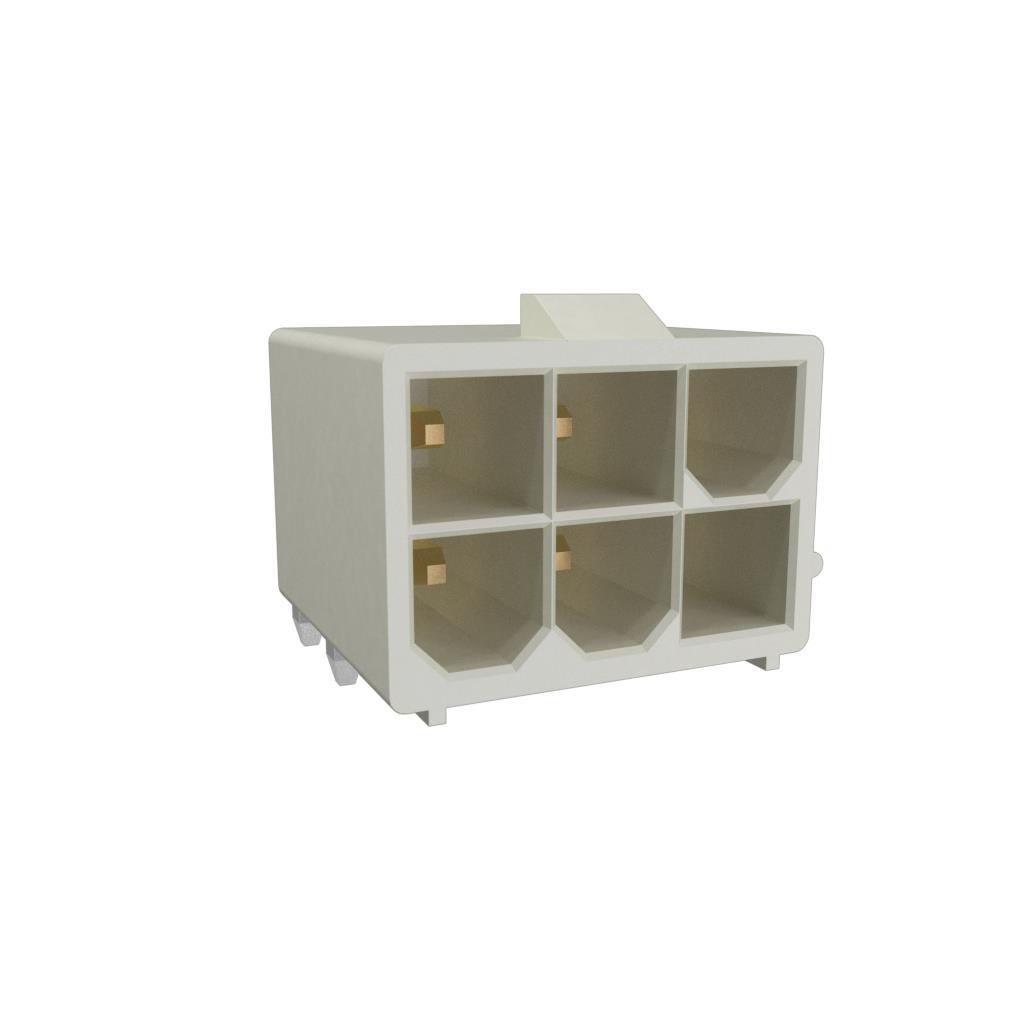

The Amphenol ICC (FCI) 10127819-06411LF is a Minitek Power4.2 double-row right-angle header with six positions. It features brass contacts with gold plating and a natural nylon housing. Rated for 9 A current and 600 VAC voltage, it utilizes a 4.2 mm pitch and through-hole solder termination. The connector operates within a temperature range of -40°C to +105°C and includes insulation resistance of 1 GOhms.
Feature Summary
- Double-row right-angle design for compact power distribution
- Gold-plated brass contacts ensure reliable conductivity
- High voltage rating suitable for industrial applications
Applications
- Industrial control systems
- Power distribution units
- Server hardware infrastructure
Procurement Notes
Verify the specific suffix against official Amphenol documentation to confirm contact plating and material specifications. Ensure the ordering part number matches the required pin count and row configuration. Cross-reference datasheets for thermal performance requirements before finalizing procurement decisions.
Selection Notes
Select this component for applications requiring high-current power delivery in space-constrained environments. The right-angle orientation facilitates efficient board layout. Confirm that the 4.2 mm pitch aligns with existing PCB footprint designs and mating connector compatibility.
Part Context
This connector belongs to the Minitek Pwr 4.2 series by Amphenol FCI, designed for robust power-to-board connections. The series offers various configurations including vertical and right-angle headers with different pin counts. It supports high-current applications in demanding electronic environments.
Replacement Considerations
Compatible substitutes include other Minitek Power4.2 series headers from Amphenol FCI with matching 4.2 mm pitch and double-row geometry. Verify equivalent electrical ratings and mechanical dimensions before substitution.
