Product Detailed Parameters
- Description：CONN PWR4.2 RA HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

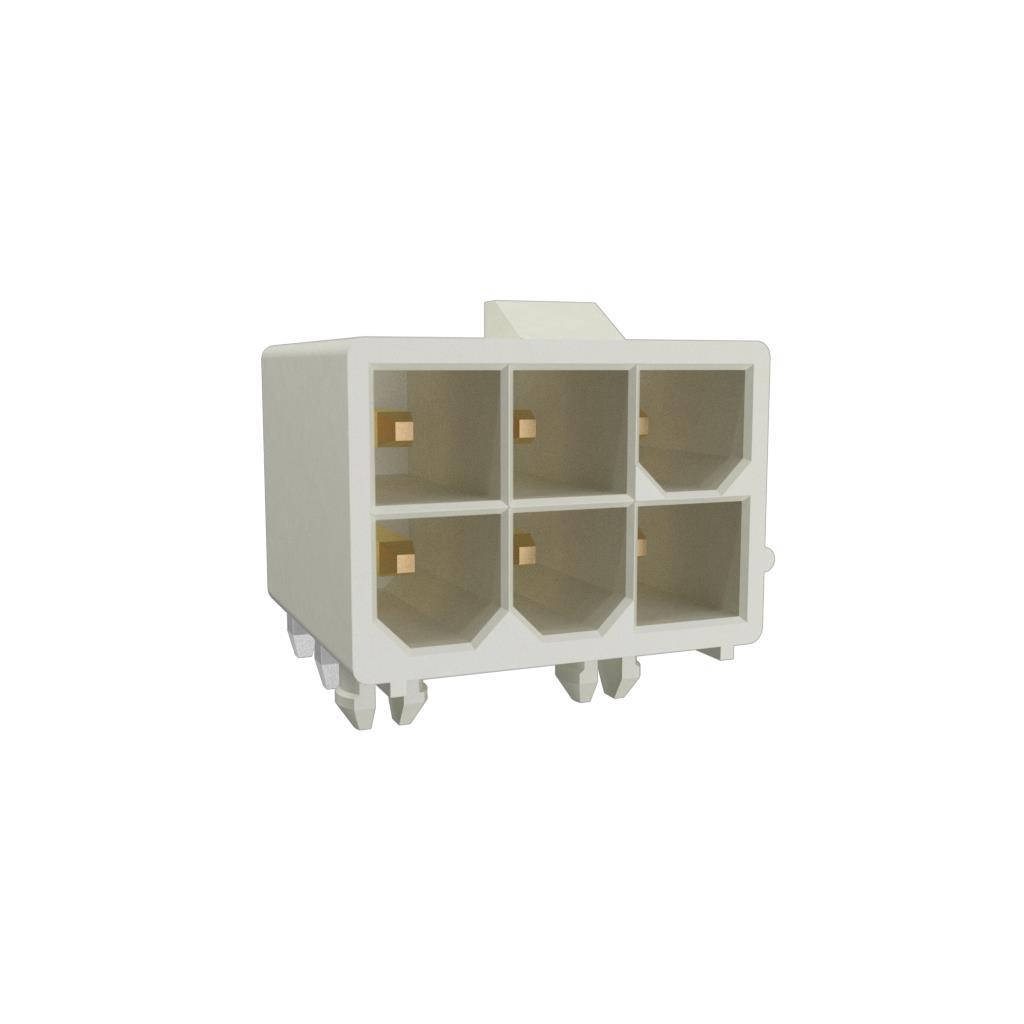

The Amphenol ICC (FCI) 10127819-06411PLF is a Minitek Pwr 4.2 series power connector header designed for board-to-cable applications. It features a right-angle through-hole mounting style with a 4.2mm pitch and two rows of contacts. The component utilizes brass pins with a 30-microinch gold plating on the mating surfaces to ensure reliable conductivity. Rated for 600VAC, it supports high-current power distribution in industrial and commercial electronic systems.
Feature Summary
- Minitek Pwr 4.2 series design optimized for robust power delivery
- Right-angle through-hole termination for secure PCB integration
- Gold-plated brass contacts for enhanced corrosion resistance
- Dual-row configuration supporting high-density power connections
Applications
- Industrial control system power distribution
- Commercial server and storage equipment interconnects
- Communication infrastructure power modules
- High-voltage circuit board assembly
Procurement Notes
Verify that the specific suffix PLF corresponds to the required 30-microinch gold plating thickness as documented in official datasheets. Confirm that the right-angle through-hole form factor aligns with the target PCB layout constraints. Ensure compatibility with mating sockets within the same Minitek Pwr 4.2 family to maintain mechanical and electrical integrity during assembly.
Selection Notes
Select this component when a 600VAC rated, dual-row power header is required for right-angle board mounting. The 4.2mm pitch allows for higher current capacity compared to smaller pitch alternatives. Consider the natural insulation color and UL94 V-0 flammability rating for compliance with standard safety requirements in enclosed electronic assemblies.
Part Context
This part belongs to the Minitek Pwr 4.2 product line from Amphenol ICC (FCI), formerly Framatome Connectors International. The series is engineered for demanding power-to-board applications, offering durability and signal integrity. Amphenol acquired FCI in 2016, integrating these solutions into their broader portfolio for information and communication markets.
Replacement Considerations
Compatible substitutes include other variants within the 10127819 series, such as 10127819-0612GLF or 10127819-1411GLF, provided the pin count and plating specifications match the design requirements. Verify that any alternative maintains the 4.2mm pitch and right-angle orientation.
