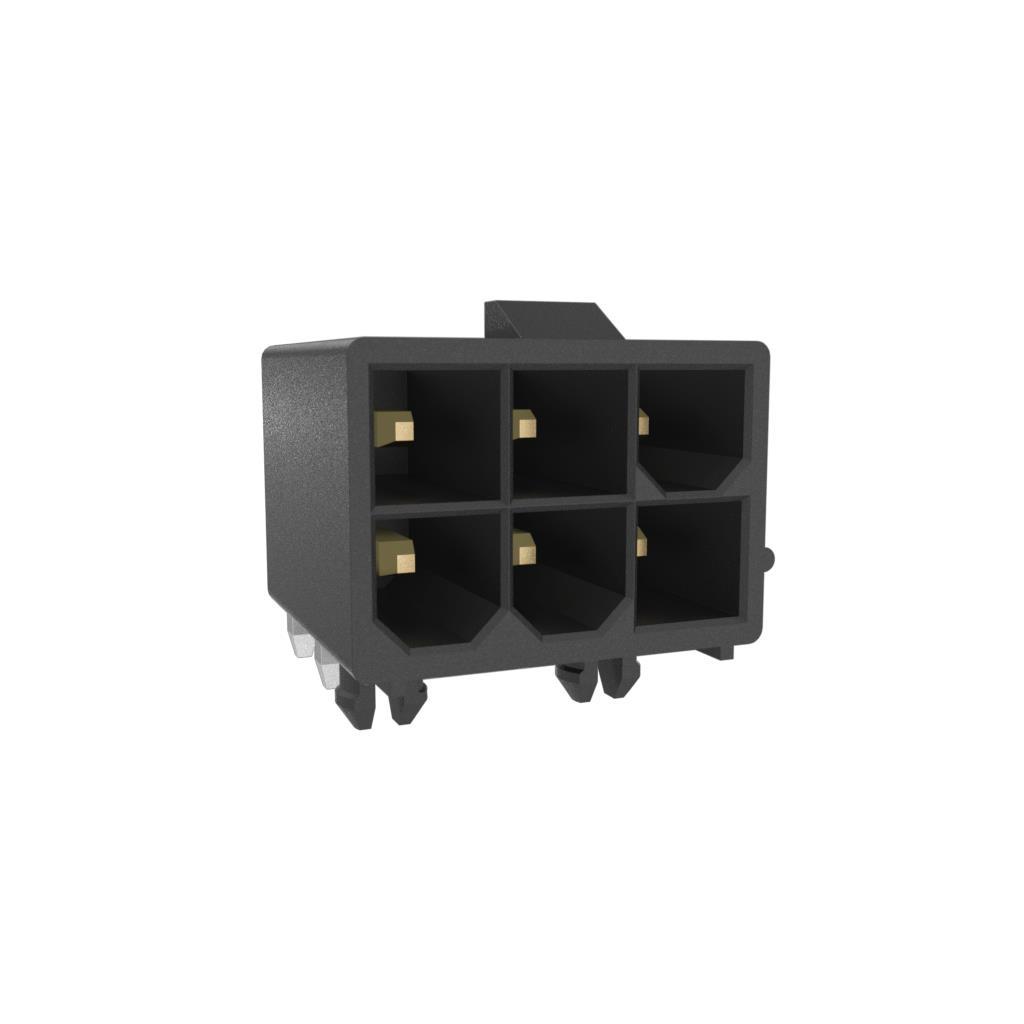

- Description：10127819-06422PLF-MTK 4.2 DR 06P
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10127819-06422PLF is a Minitek Power 4.2 series power-to-board connector header. It features a dual-row, right-angle configuration with six positions and a 4.2 mm pitch. The contacts are brass with a gold plating thickness of 30 µin. Rated for 9 A current and 600 VAC/DC voltage, it utilizes board locks for secure mounting. The housing is black, UL94 V-0 rated, and operates between -40°C and +105°C.
Feature Summary
- Dual-row right-angle header design for compact power distribution
- Gold-plated contacts ensure reliable electrical conductivity
- Integrated board lock mechanism provides mechanical stability
Applications
- Power supply modules
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify the specific suffix against official Amphenol documentation to confirm contact finish and material specifications. Ensure the selected variant matches the required current rating and operating temperature range for the target application environment. Confirm availability status as manufacturing schedules may vary.
Selection Notes
Select this component for applications requiring high-current power delivery in space-constrained designs. The 4.2 mm pitch supports robust connections suitable for industrial environments. Verify that the right-angle orientation aligns with the PCB layout requirements and mating connector geometry.
Part Context
This connector belongs to the Minitek Power 4.2 family, designed for efficient power distribution. It integrates signal and power capabilities within a single system, supporting server, storage, and communication infrastructure needs through standardized interconnect solutions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Amphenol resources for potential obsolescence management or equivalent cross-reference options.
