Product Detailed Parameters
- Description：CONN PWR4.2 RA HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

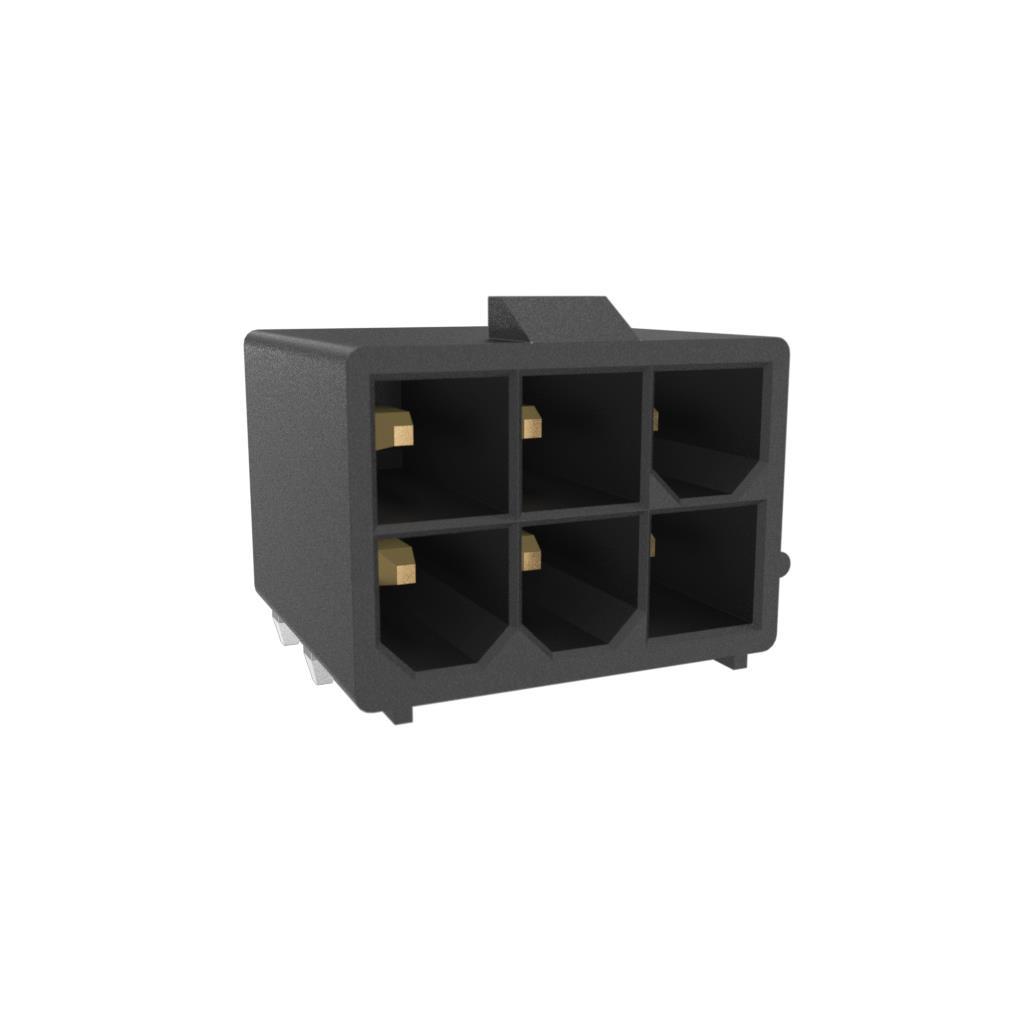

The Amphenol ICC (FCI) part number 10127819-0642GTLF is a Minitek Pwr 4.2 series power connector header. It features a right-angle, through-hole mounting style with six positions arranged in two rows. The mating pitch is 0.165 inches (4.20 mm). The contacts are gold-plated brass pins designed for reliable electrical performance. The housing is constructed from natural-colored nylon, rated UL94 V-0 for flammability. This component supports a maximum operating temperature of 105°C and is suitable for board-to-cable or wire applications.
Feature Summary
- Right-angle through-hole design for compact board integration
- Gold-plated brass contacts ensure durable conductivity
- UL94 V-0 rated natural nylon insulation for safety
Applications
- Power distribution in industrial control systems
- Server and storage equipment internal connections
- Communication device power interfaces
Procurement Notes
Verify the specific ordering suffix to confirm contact plating and housing color variations. Ensure compatibility with mating cables and PCB footprint dimensions before procurement. Confirm current availability status directly with authorized distributors as supply levels fluctuate. Request official datasheets for precise mechanical tolerances and soldering profile requirements.
Selection Notes
Select this model when a low-profile, high-current power connection is required in space-constrained environments. The right-angle orientation facilitates efficient cable routing perpendicular to the board. Verify that the 4.2mm pitch aligns with existing system harnesses. Consider the 600V rating and 9A current capacity against load requirements.
Part Context
This component belongs to the Minitek Pwr 4.2 family, engineered for robust power delivery in demanding electronic assemblies. The series offers various pin counts and orientations to support diverse infrastructure needs. Manufactured by Amphenol ICC (formerly FCI), it leverages established reliability standards for critical power interconnects in commercial and industrial sectors.
Replacement Considerations
Direct substitutes within the same Minitek Pwr 4.2 series include 10127819-0612GLF and 10127819-0642GTF. Verify identical pitch, row configuration, and mounting style before substitution. Cross-reference mechanical drawings to ensure PCB hole alignment matches.
