10127819-08212PLF

Overview

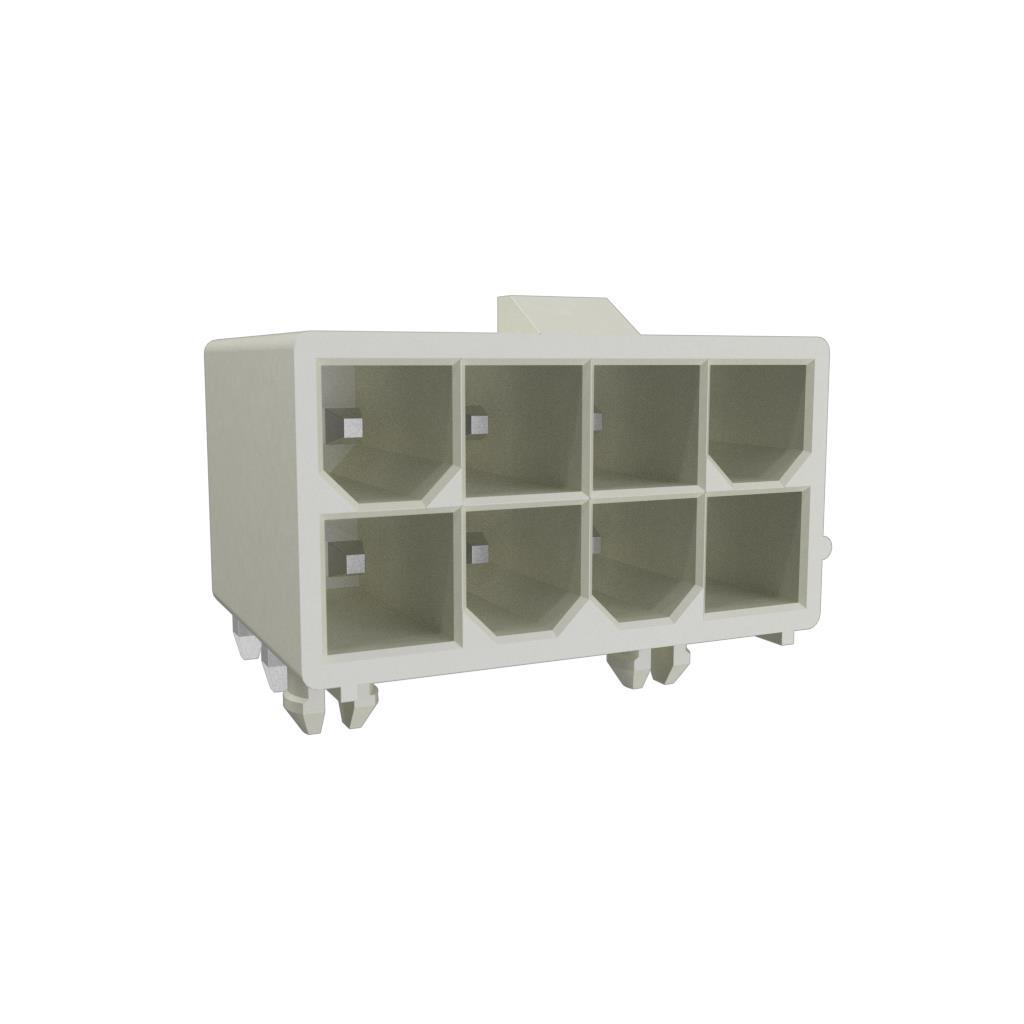

The Amphenol ICC (FCI) part number 10127819-08212PLF is a Minitek Power4.2 series power-to-board connector designed for through-hole mounting. It features an eight-position, double-row right-angle header configuration with a 4.2 mm pitch. The contacts are constructed from brass and finished with a tin plating to ensure reliable conductivity. Rated for 9 A current and 600 VAC voltage, the unit utilizes a liquid crystal polymer (LCP) housing in a natural color. It operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 1 GOhms.

Feature Summary

• Double-row right-angle header design facilitates dense power distribution on printed circuit boards.
• Tin-plated brass contacts provide durable electrical connections suitable for high-current applications.
• Liquid crystal polymer housing offers thermal stability and mechanical strength for harsh environments.

Applications

• Server and storage equipment power distribution
• Telecommunications infrastructure power modules
• Industrial control system board-to-board interconnects

Procurement Notes

Verify the specific ordering suffix to confirm the tin plating finish and lead-free status. Ensure the procurement documentation matches the exact eight-position count and double-row configuration. Confirm that the manufacturer's datasheet aligns with the required 4.2 mm pitch and right-angle orientation for your PCB layout constraints.

Selection Notes

Select this component when a robust, high-current power connection is required in a space-constrained vertical arrangement. The 4.2 mm pitch allows for significant current carrying capacity compared to smaller signal connectors. Consider the through-hole mounting requirement and right-angle profile to ensure compatibility with the target assembly geometry and thermal management needs.

Part Context

This connector belongs to the Minitek Power4.2 family, a product line from Amphenol ICC (formerly FCI). The series is engineered for power-to-board applications, emphasizing durability and signal integrity in demanding electronic environments. Amphenol acquired FCI in 2016, integrating these solutions into its broader interconnect portfolio for industrial and data communication markets.

Replacement Considerations

Direct substitutes within the same Minitek Power4.2 series include variants with different pin counts or plating options, such as 10127819-08212LF for gold plating. Cross-series replacements require careful verification of pitch, current rating, and mechanical footprint to maintain system compatibility.
