Product Detailed Parameters
- Description：CONN HEADER R/A 8POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

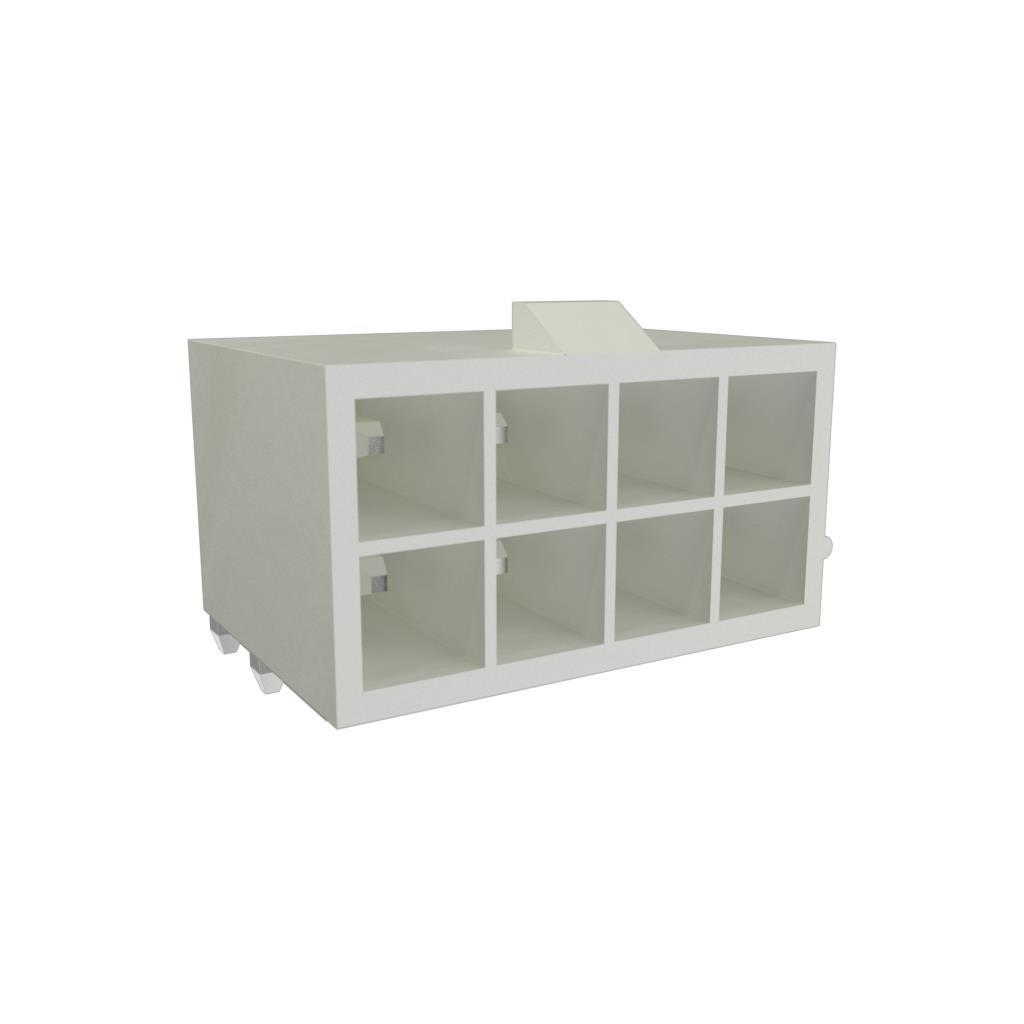

The Amphenol ICC (FCI) 10127819-0821GLF is a Minitek Power4.2 series power-to-board header connector designed for high-current applications. It features an 8-position, dual-row configuration with a 4.2 mm pitch and right-angle mounting style. The connector utilizes male pin contacts made of brass with gold plating, housed in a natural nylon insulation body rated UL94 V-0. Rated for 9 A current and 600 VAC voltage, it supports through-hole solder termination and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual-row right-angle design for compact board space utilization
- Gold-plated brass contacts ensure reliable conductivity
- Glow wire compliant insulation for enhanced fire safety
- Locking ramp fastening mechanism secures mating
Applications
- Server and storage system power distribution
- Telecommunications equipment power interfaces
- Industrial control board power connections
- High-density power supply modules
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and housing color variations. Ensure the procurement request matches the exact part number format required by Amphenol ICC (FCI). Cross-reference the component code with authorized distributor catalogs to validate authenticity and current production status before finalizing orders.
Selection Notes
Select this connector when a right-angle, dual-row power interface with a 4.2 mm pitch is required. Confirm that the PCB layout accommodates the through-hole footprint and right-angle orientation. Verify that the 9 A current rating per contact aligns with the system's power distribution requirements and thermal management capabilities.
Part Context
This component belongs to the Minitek Power4.2 family, engineered for robust power delivery in dense electronic assemblies. The series offers various position counts and mounting styles to support diverse server, storage, and industrial infrastructure designs requiring reliable high-current interconnects.
