10127819-08221PLF

Overview

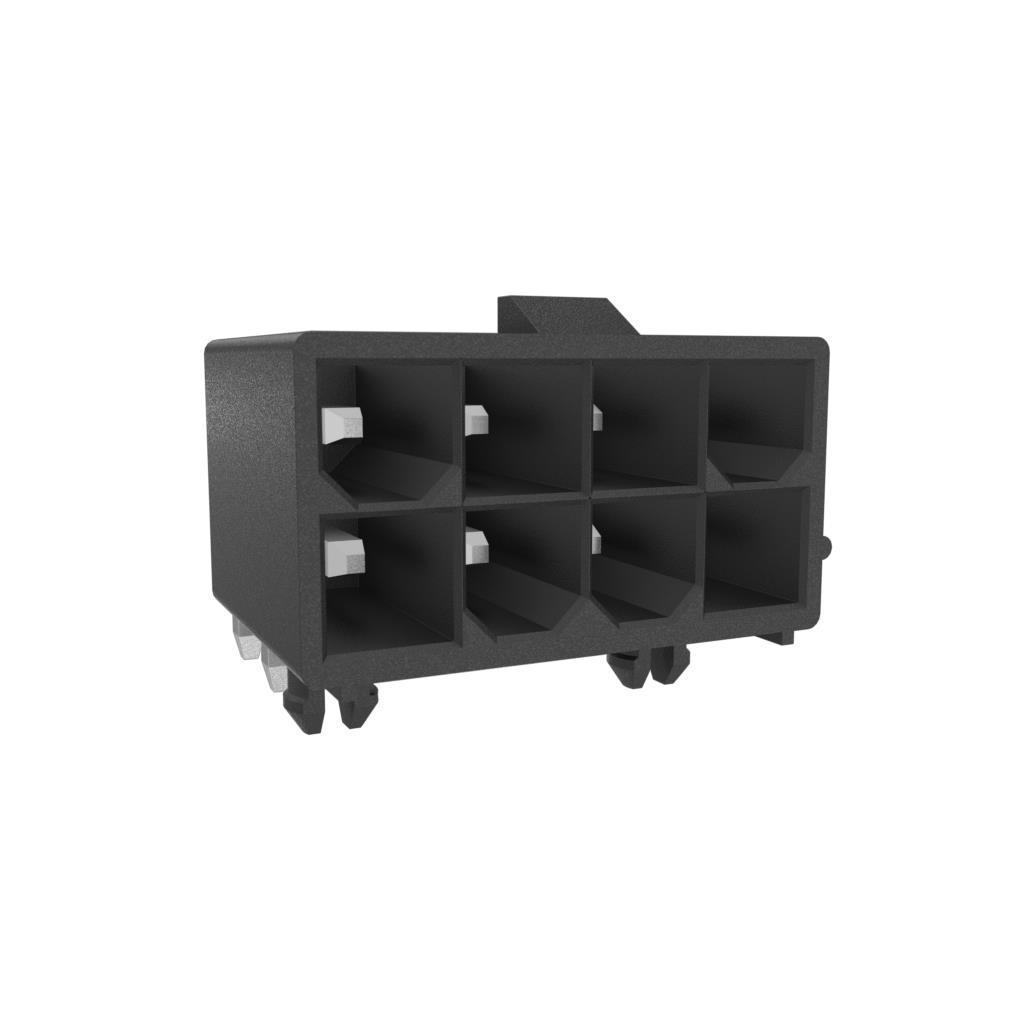

The Amphenol ICC (FCI) part number 10127819-08221PLF is a Minitek Power4.2 series power connector header designed for board-to-board applications. It features an 8-position configuration with a 4.2 mm pitch and double row arrangement. The component utilizes brass contacts with gold plating and is constructed with a black nylon housing. Rated for 600 VAC and 9 A, it supports a temperature range of -40°C to +105°C. Installation is achieved via through-hole right-angle soldering, ensuring secure electrical connections in high-power environments.

Feature Summary

• Double-row right-angle header design for compact power routing
• Gold-plated brass contacts ensure reliable conductivity and corrosion resistance
• Black nylon insulation provides structural stability and thermal endurance

Applications

• Server and storage system power distribution
• Industrial control unit power interfaces
• Telecommunications equipment power supply connections

Procurement Notes

Verify the specific suffix 'PLF' against official datasheets to confirm gold contact plating requirements. Ensure compatibility with mating receptacles regarding pin height and locking ramp mechanisms. Confirm that the right-angle orientation aligns with PCB layout constraints. Cross-reference the 8-position count to prevent mismatched assembly errors during production integration.

Selection Notes

Select this component when a robust, high-current connection is required in space-constrained designs. The 4.2 mm pitch accommodates heavier gauge wires compared to signal connectors. The right-angle form factor facilitates efficient board stacking or edge mounting. Verify that the operating environment remains within the specified thermal limits for long-term reliability.

Part Context

This connector belongs to the Minitek Power4.2 family, engineered for demanding power delivery tasks. The series emphasizes durability and high current capacity within standard industrial footprints. Amphenol FCI designs these components to meet rigorous safety standards, including glow wire compliance. The product line supports various position counts to adapt to diverse power bus architectures.

Replacement Considerations

Direct substitutes include other Minitek Power4.2 headers with identical 8-position, right-angle, and gold-plated specifications. Verify mechanical dimensions and locking features before swapping. Generic equivalents may lack the specific glow wire rating or current capacity.
