Product Detailed Parameters

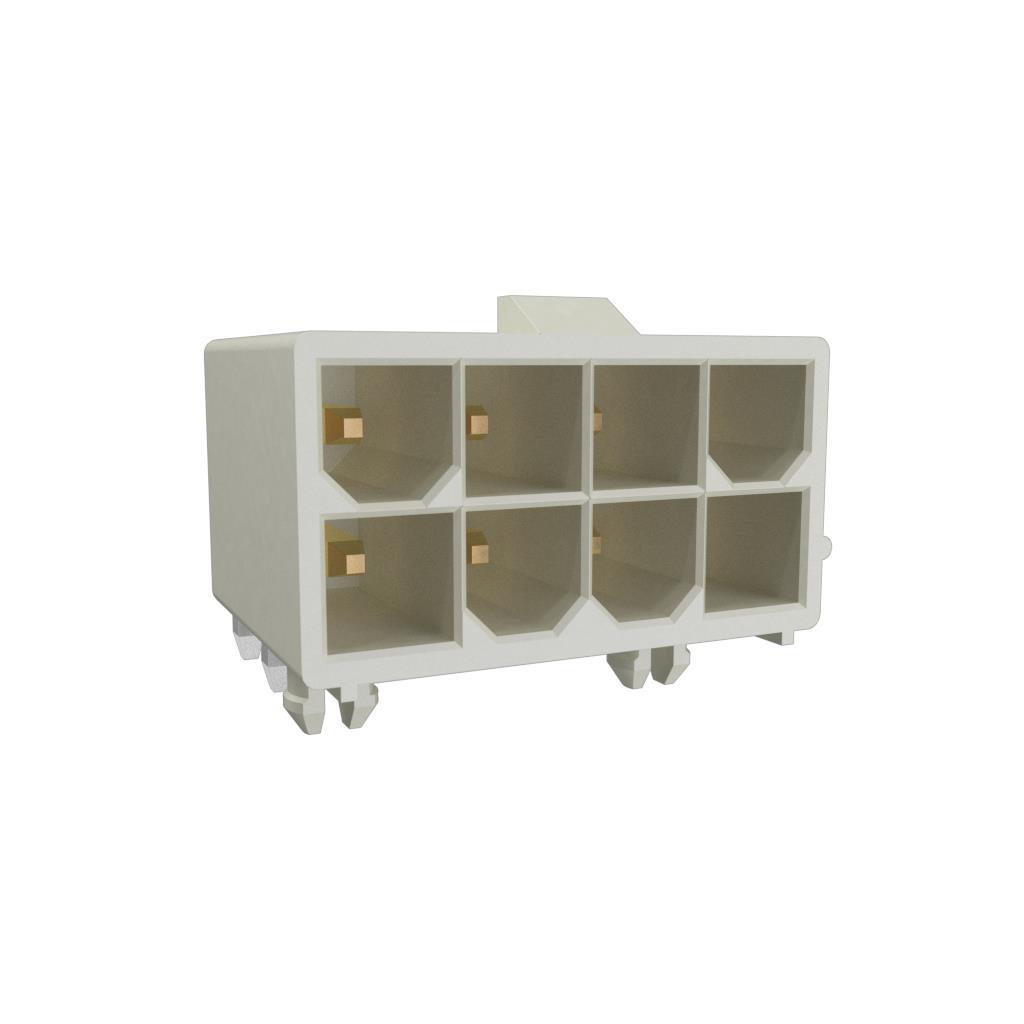

- Description：10127819-0841GPLF-MTK 4.2 DR 08P
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10127819-0841GPLF is a Minitek Power 4.2 series power connector header designed for board-to-board applications. It features an 8-position configuration with a 4.2 mm pitch and dual rows. The component utilizes brass contacts with gold plating, rated for 9 A current and 600 VAC voltage. Designed for through-hole right-angle mounting, it operates within a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards.
Feature Summary
- Dual-row right-angle header design optimized for high-current power distribution
- Gold-plated brass contacts ensure reliable electrical performance and corrosion resistance
- Nylon insulation housing provides structural integrity and thermal stability
- Compliant with UL94 V-0 flammability rating for enhanced safety
Applications
- Industrial power distribution systems
- Factory automation equipment
- Heavy machinery control boards
- Alternative energy generation units
Procurement Notes
Verify the specific ordering suffix 'GPLF' against official Amphenol documentation to confirm contact plating thickness and material specifications. Ensure compatibility with existing PCB footprints and mating connectors before procurement. Confirm availability status directly with the manufacturer or authorized distributors as supply conditions may vary.
Selection Notes
Select this connector when a 4.2 mm pitch right-angle header is required for high-current applications up to 9 A. The dual-row layout supports efficient space utilization on dense circuit boards. Verify that the operating environment remains within the specified -40°C to +105°C range and that the 600 VAC rating aligns with system voltage requirements.
Part Context
This component belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), a line of robust power connectors engineered for demanding industrial environments. The series offers various pin counts and configurations to support diverse power delivery needs in heavy-duty electronic assemblies.
Replacement Considerations
Consult official Amphenol cross-reference lists for verified substitutes. Generic equivalents may not match the precise 4.2 mm pitch, 9 A current rating, or right-angle mechanical dimensions.
