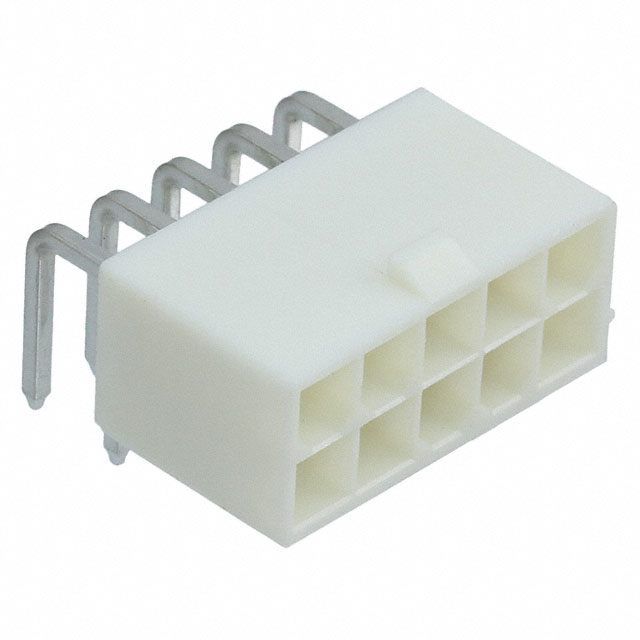

10127819-10211LF

$0.74

Description：CONN HEADER R/A 10POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:e251fc92f517 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 10POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.386" (9.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10127819-10211LF

Overview

The Amphenol ICC (FCI) part number 10127819-10211LF is a Minitek Pwr 4.2 series power connector header. It features a right-angle, through-hole mounting configuration with ten positions arranged in a dual-row layout. The connector utilizes a 4.20 mm pitch and is designed for power-to-board applications. Contact surfaces are gold-plated to ensure reliable conductivity. The component supports an operating temperature range from -40°C to +105°C and carries a current rating of 9 A per contact.

Feature Summary

Right-angle through-hole design for efficient board space utilization
Gold-plated contacts for enhanced corrosion resistance and signal integrity
Dual-row configuration supporting high-density power distribution

Applications

Power distribution in server infrastructure
Storage system internal connections
Telecommunications equipment power interfaces

Procurement Notes

Verify the specific suffix 'LF' indicates lead-free compliance when sourcing. Confirm that the right-angle orientation matches the mechanical constraints of the target assembly. Ensure the 4.2mm pitch aligns with the mating card edge or cable harness requirements. Cross-reference the manufacturer's latest documentation to confirm active status and any potential obsolescence notices before finalizing procurement plans.

Selection Notes

Select this component when a robust power interface with a 4.2mm pitch is required. The right-angle form factor aids in compact vertical stacking. Verify that the 9A per-contact rating meets the thermal and electrical demands of the circuit. Consider the dual-row arrangement if higher pin counts within a limited footprint are necessary compared to single-row alternatives.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, engineered for demanding power delivery environments. The series provides flexible solutions ranging from two to twenty-four circuits. It integrates high-current capabilities with durable construction, making it suitable for industrial and commercial electronics requiring stable power transmission under varying thermal conditions.
