Product Detailed Parameters
- Description：CONN HEADER R/A 14POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：14
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
Download product information
Overview

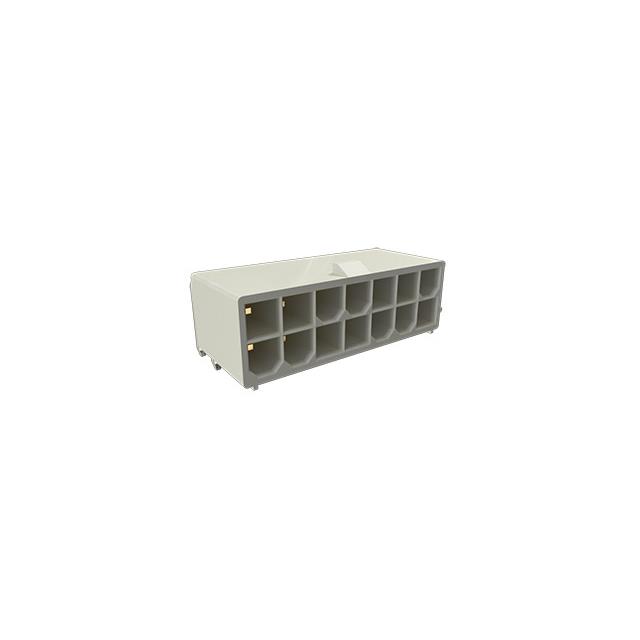

The Amphenol ICC (FCI) part number 10127819-1422GLF is a Minitek Power 4.2 series power-to-board connector header. It features a dual row configuration with 14 positions and a 4.2 mm pitch. Designed for through-hole right-angle mounting, the unit utilizes male pin contacts made of brass with tin plating. The housing is constructed from nylon 6/6 material in a natural color. Electrical ratings include a current capacity dependent on wire gauge and a voltage rating of 600 VAC/DC. The component operates within a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards.
Feature Summary
- Dual row right-angle through-hole header design
- Tin-plated brass contact construction
- Nylon 6/6 housing with UL94 V-0 rating
Applications
- Power distribution in server systems
- Storage device internal connections
- Communication equipment power interfaces
Procurement Notes
Verify the specific suffix against official Amphenol documentation to confirm plating type and housing color variations. Ensure the selected variant matches the required current rating for the target wire gauge. Confirm that the right-angle orientation aligns with the mechanical layout constraints of the printed circuit board assembly.
Selection Notes
Select this component when a high-current power interface with a 4.2 mm spacing is required. The right-angle form factor facilitates compact board stacking or edge mounting configurations. Verify compatibility with mating receptacles within the Minitek Power 4.2 system to ensure proper engagement and electrical continuity.
Part Context
This connector belongs to the Minitek Power 4.2 family produced by Amphenol ICC (FCI). The series provides robust power solutions for demanding environments. Components in this line are engineered for durability and reliable signal integrity in industrial and data center applications.
Replacement Considerations
Compatible substitutes include other 14-position headers from the same Minitek Power 4.2 series, such as 10127819-0422GLF or 10127819-1222GLF, provided the pitch and mounting style remain consistent.
