10127819-24211LF

$1.89

Description：CONN HEADER R/A 24POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:674e2983c5e5 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 24POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.386" (9.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600V

Download product information

10127819-24211LF

Overview

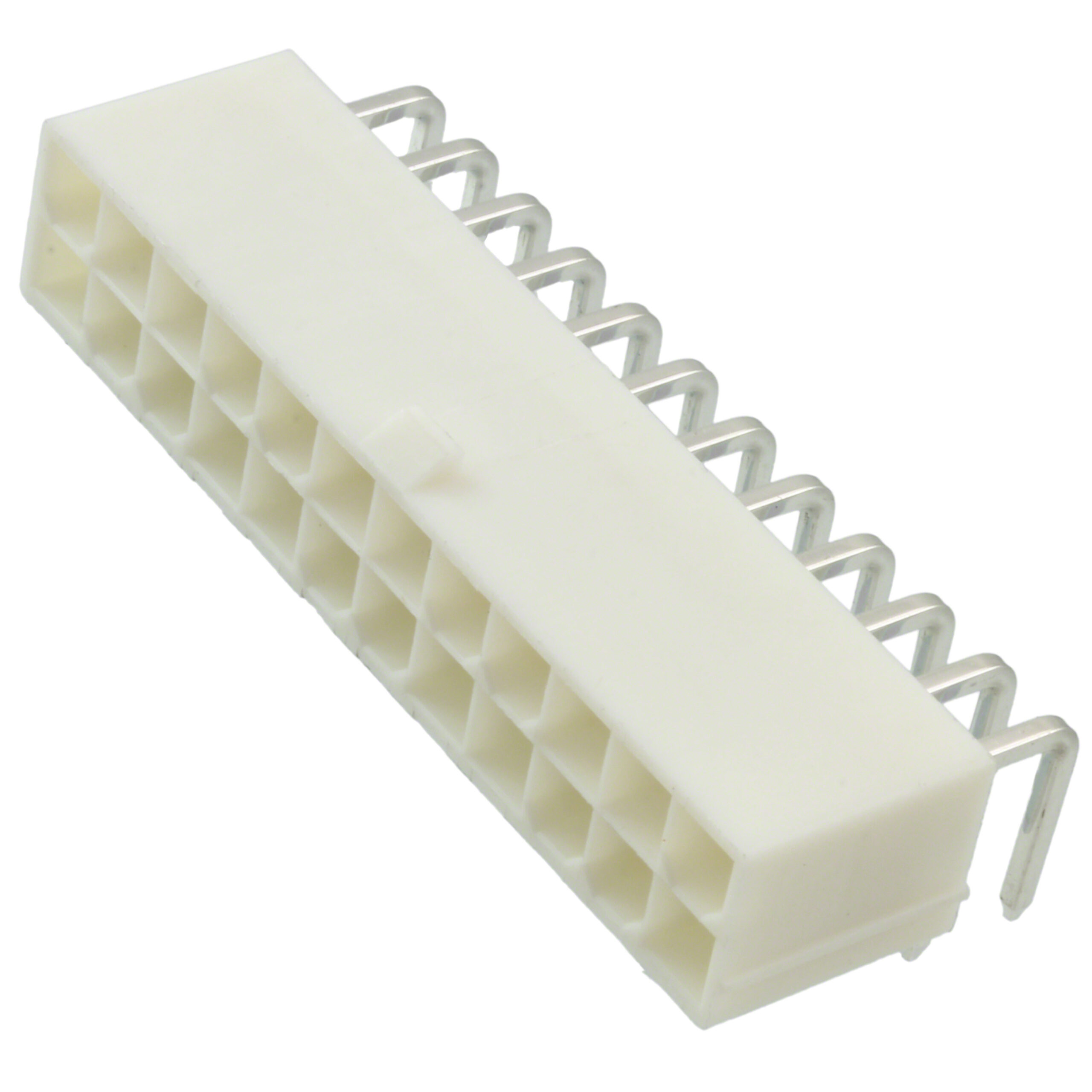

The Amphenol ICC (FCI) part number 10127819-24211LF is a Power to the Board header connector belonging to the Minitek Power4.2 series. It features 24 positions with a 4.2 mm pitch and utilizes a double row, right-angle through-hole mounting configuration. The connector is designed for high-current applications, rated at 9 A per contact and 600 VAC. Contact materials consist of brass with a tin plating finish. The housing is constructed from nylon, offering a black color appearance. It operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 1 GOhms.

Feature Summary

Supports high current delivery up to 9 A per position for power distribution
Features a robust double-row right-angle design for efficient board space utilization
Utilizes tin-plated brass contacts for reliable electrical conductivity
Constructed with nylon housing for durable insulation and environmental stability

Applications

Server and storage system power distribution boards
Industrial control unit power interfaces
High-density power supply modules
Telecommunications equipment power connections

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging details. Ensure the procurement specification matches the required tin plating variant rather than gold or other finishes. Confirm that the right-angle through-hole package aligns with the target PCB layout requirements before finalizing orders.

Selection Notes

Select this component when a high-current power interface with a 4.2 mm pitch is required. The right-angle orientation facilitates compact vertical stacking or side-mounted power delivery. Ensure the application voltage does not exceed 600 VAC and the thermal environment remains within the specified operating temperature limits for optimal performance.

Part Context

This connector belongs to the Minitek Power4.2 series by Amphenol ICC (FCI), a line specialized in power-to-board solutions. The series is engineered for demanding environments requiring reliable power transmission in compact form factors. It serves as a critical interconnect element in systems where high current capacity and mechanical stability are prioritized over signal integrity.
