10127819-24211PLF

Overview

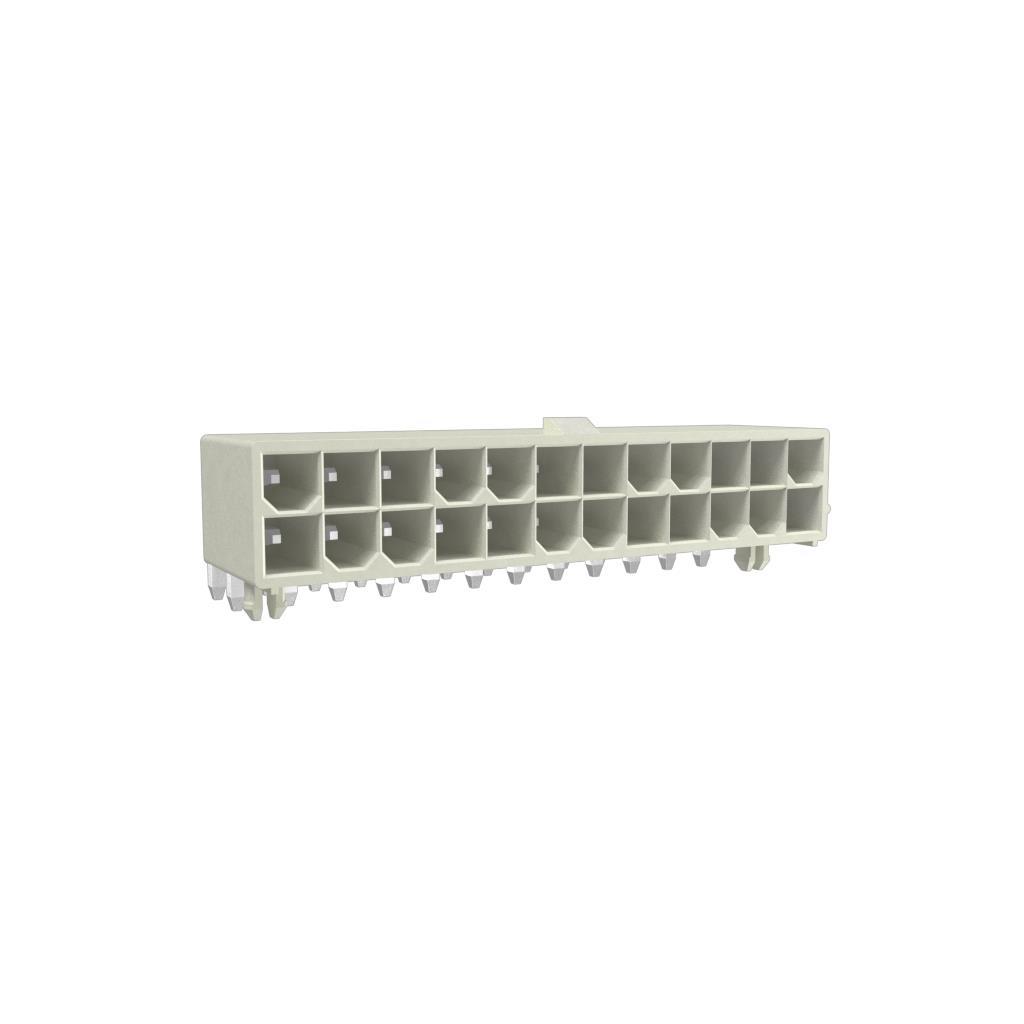

The Amphenol ICC (FCI) part number 10127819-24211PLF is a Minitek Power4.2 series board-to-board connector header. It features 24 positions with a 4.2 mm pitch and is designed for right-angle surface mount installation. The component utilizes brass contacts with gold plating to ensure reliable signal transmission and low contact resistance. Rated for 9 A current and 600 VAC voltage, it supports high-power applications within the Minitek family. The housing is constructed from natural-colored nylon with a UL94 V-0 flammability rating, ensuring safety compliance. Operating temperature ranges from -40°C to +105°C, providing stability in diverse environments.

Feature Summary

• High-current power delivery capability suitable for demanding electronic systems
• Right-angle surface mount design optimizes vertical space on printed circuit boards
• Gold-plated brass contacts provide durable connection with low resistance
• Robust nylon housing ensures mechanical stability and thermal resistance

Applications

• Industrial control systems requiring robust power distribution
• Server and storage equipment internal power connections
• Telecommunications infrastructure hardware
• Automotive electronics power modules

Procurement Notes

Verify the complete part number including the suffix PLF to confirm the specific packaging and material specifications intended for your assembly process. Ensure compatibility with standard surface mount reflow profiles. Cross-reference the official datasheet for precise footprint dimensions and recommended soldering parameters to guarantee reliable joint formation during manufacturing.

Selection Notes

Select this component when a high-current, right-angle header is required for dense PCB layouts. The 4.2 mm pitch accommodates substantial wire gauges for power lines. Consider the 24-position count against system requirements. Verify that the operating temperature range meets environmental conditions. Compare against other Minitek variants if different mounting styles or position counts are needed.

Part Context

This connector belongs to the Minitek Power4.2 series by Amphenol ICC (FCI), formerly Framatome Connectors International. The series specializes in high-current board-to-board interconnects. It is widely used in datacom, telecom, and industrial sectors where reliable power transfer and compact form factors are critical. The brand is recognized for engineering solutions that support signal integrity and power management in modern electronics.
