10127819-2421GLF

Overview

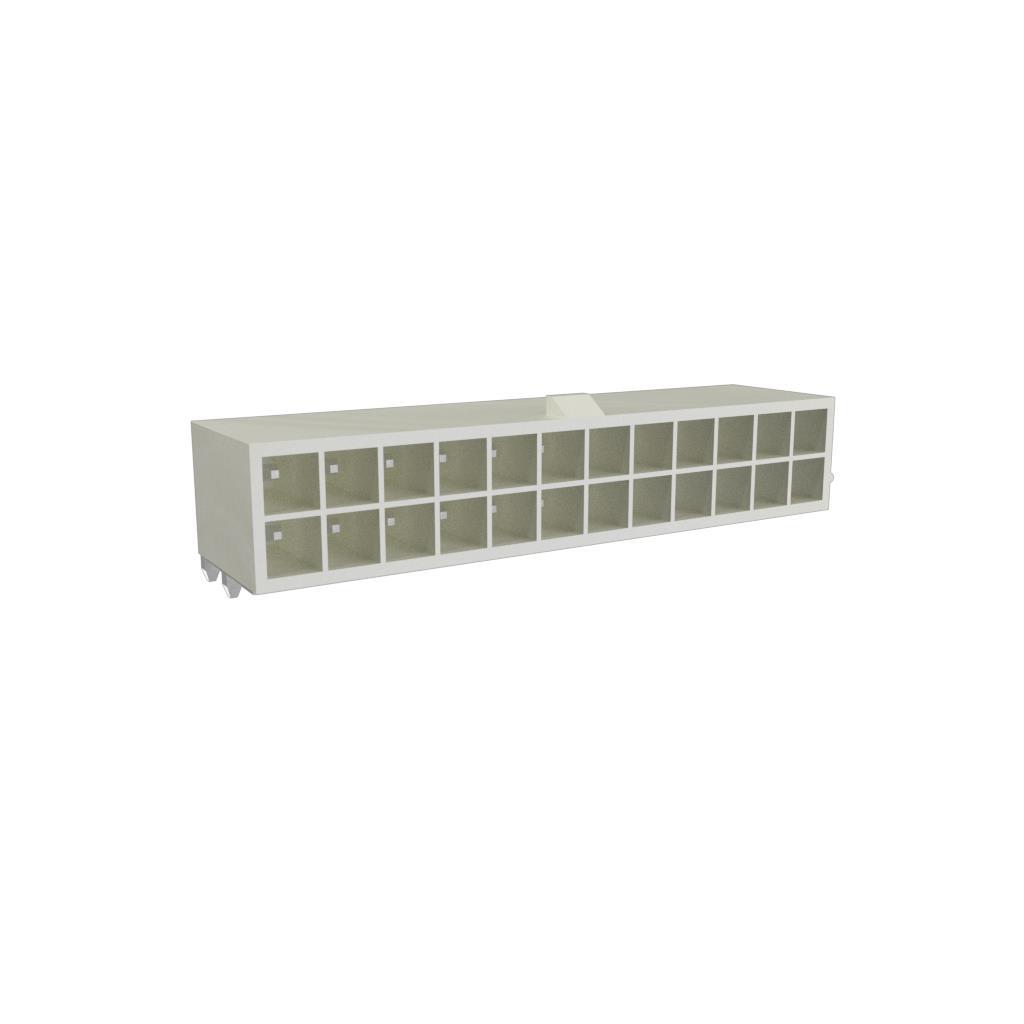

The Amphenol ICC (FCI) 10127819-2421GLF is a Power to the Board header connector from the Minitek Pwr 4.2 series. It features 24 positions arranged in a dual-row configuration with a 4.2 mm pitch and row spacing. Designed for right-angle through-hole mounting, it utilizes male pin contacts made of brass with gold plating. The housing is constructed from natural nylon, rated for operation between -40°C and +105°C, and supports up to 600VAC.

Feature Summary

• Right-angle through-hole mounting design for efficient board space utilization
• Dual-row configuration providing high contact density within a compact footprint
• Gold-plated brass contacts ensuring reliable electrical conductivity and corrosion resistance
• Nylon housing material offering structural stability and thermal endurance

Applications

• Power distribution modules in server infrastructure
• High-current connections in storage device backplanes
• Power delivery interfaces in telecommunications equipment
• Industrial control system power headers

Procurement Notes

Verify the specific part number against official Amphenol documentation to confirm current availability and manufacturing status. Ensure that the required gold plating thickness and housing color match project specifications. Cross-reference the datasheet for precise mechanical dimensions and mating partner requirements before finalizing procurement orders.

Selection Notes

Select this component when a right-angle, high-current power connection is required on dense circuit boards. The 4.2 mm pitch accommodates larger gauge wires compared to smaller pitch systems. Verify that the PCB layout supports the specified row spacing and that the mating socket aligns with the dual-row header geometry for proper assembly.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, engineered for robust power transmission in demanding environments. The series is widely utilized in data center and industrial applications where reliable power delivery and mechanical durability are critical. It represents a standardized solution for board-to-board or cable-to-board power interconnects.

Replacement Considerations

Compatible substitutes include other Minitek Pwr 4.2 series headers with identical 24-position, right-angle, through-hole configurations. Ensure replacement parts maintain the same 4.2 mm pitch, dual-row arrangement, and compatible contact materials to guarantee mechanical fit and electrical performance.
