Product Detailed Parameters

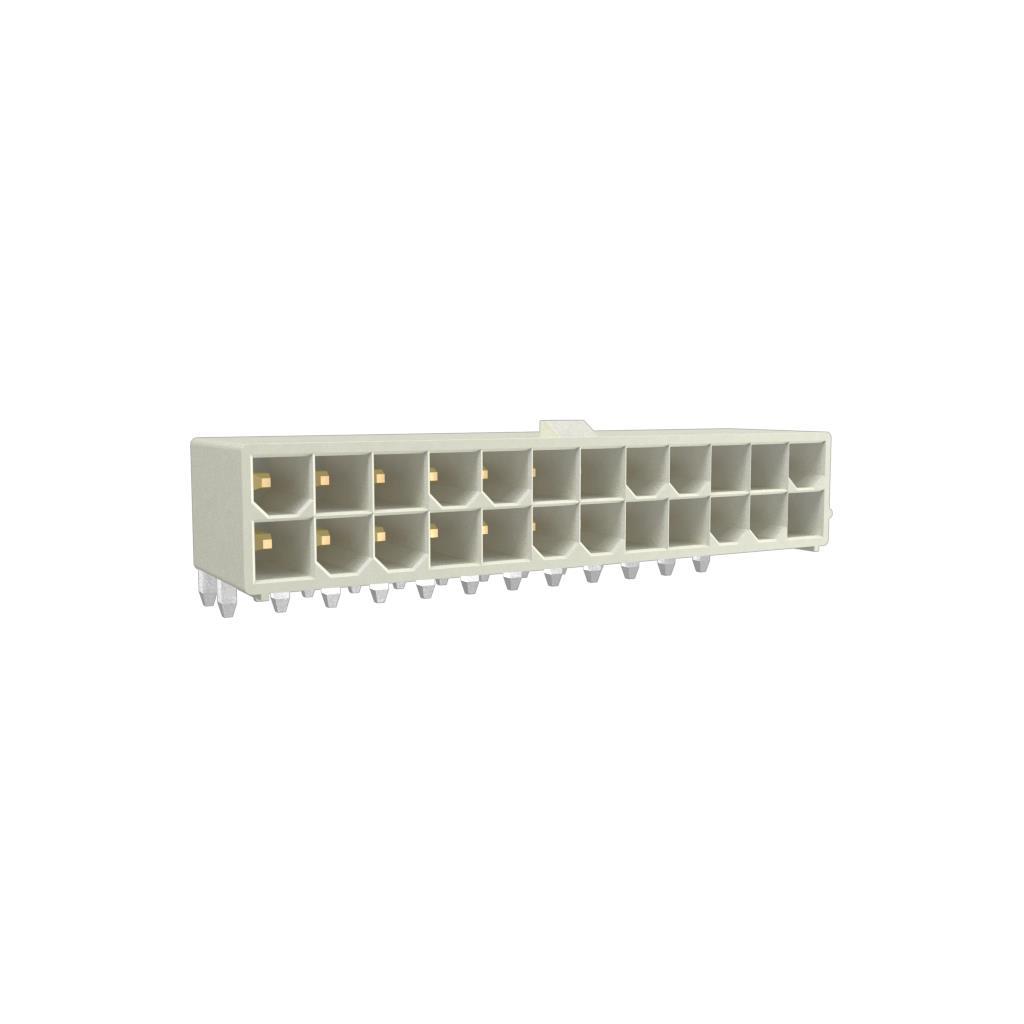

- Description：10127819-2441GLF-MTK 4.2 DR 24P
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.386" (9.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10127819-2441GLF is a Minitek Power4.2 double-row right-angle header designed for power-to-board applications. It features 24 positions with a 4.2 mm pitch and brass contacts plated with 30 µin gold. Rated for 9 A current, the connector utilizes polyamide insulation and supports solder termination. Operating within a temperature range of -40°C to +105°C, it ensures reliable electrical connections in demanding environments.
Feature Summary
- Double-row right-angle header configuration for compact power distribution
- Gold-plated brass contacts ensure corrosion resistance and stable conductivity
- Polyamide insulation provides thermal stability and mechanical durability
Applications
- Power distribution modules
- Industrial equipment interconnects
- Server and storage system power rails
Procurement Notes
Verify the specific suffix GLF indicates lead-free compliance and confirm the exact pin count matches the 24-position requirement. Ensure the right-angle orientation aligns with PCB layout constraints. Cross-reference the 4.2 mm pitch against mating receptacle specifications to guarantee proper interface compatibility before finalizing procurement orders.
Selection Notes
Select this component when high-current power delivery requires a robust right-angle connection. The 4.2 mm pitch accommodates larger conductors compared to signal headers. Verify that the 9 A rating per contact meets the circuit load requirements. Confirm that the operating temperature range covers the intended environmental conditions for the assembly.
Part Context
This part belongs to the Minitek Power4.2 series, a line of high-current connectors from Amphenol FCI. The series focuses on power-to-board solutions offering reliable performance in industrial and data communication sectors. The 10127819 prefix identifies the specific housing and contact arrangement within this product family.
Replacement Considerations
Consult official Amphenol documentation for direct substitutes within the Minitek Power4.2 series. Verify that any alternative maintains the identical 4.2 mm pitch, 24-position count, and right-angle mounting style to ensure mechanical fit.
