Product Detailed Parameters
- Description：CONN HEADER VERT 2POS
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

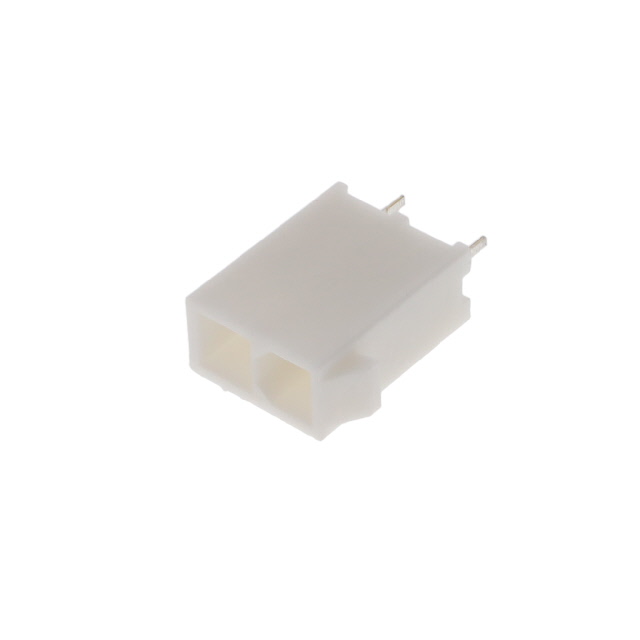

The Amphenol ICC (FCI) part number 10127820-0222GLF is a Power to the Board header connector belonging to the Minitek Pwr 4.2 series. It features a dual-row, vertical through-hole configuration with 2 positions and a 4.2 mm pitch. The contacts are made of brass with gold plating, rated for 9 A current and 600 VAC/DC voltage. Constructed from UL94 V-0 polyamide (PA66), it operates within a temperature range of -40°C to +105°C and includes glow wire compliance.
Feature Summary
- Vertical through-hole mounting for secure board integration
- Glow wire compliant insulation material for enhanced safety
- Gold-plated brass contacts ensuring reliable conductivity
Applications
- Power distribution in server systems
- Storage device power interfaces
- Communication equipment power connections
Procurement Notes
Verify the specific contact count and plating type against official datasheets, as suffixes may indicate variations. Confirm availability status directly with the manufacturer or authorized distributors, as stock levels fluctuate. Ensure the selected variant matches the required current and voltage ratings for the target application environment.
Selection Notes
Select this component when a low-profile, high-current power interface is required for vertical board-to-board connections. The 4.2 mm pitch supports significant current capacity, while the glow wire feature meets strict safety standards. Verify that the through-hole footprint aligns with the PCB design constraints and thermal requirements.
Part Context
This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), designed for robust power delivery in compact spaces. The series is widely used in data center and industrial applications where reliability under thermal stress is critical. It complements signal connectors in mixed-power systems.
Replacement Considerations
Check for direct substitutes within the Minitek Pwr 4.2 family with matching pin counts. Verify compatibility with mating receptacles regarding pitch and height. Ensure alternative parts meet the same UL94 V-0 and glow wire certification standards.
