10127820-0222LF

Overview

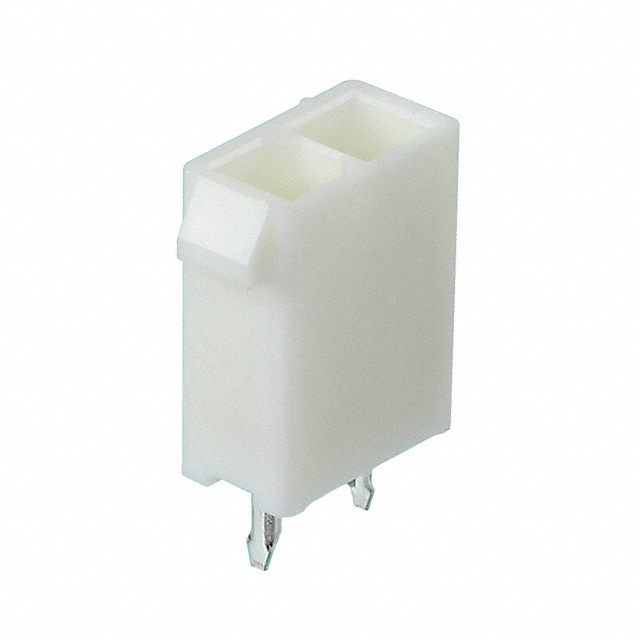

The Amphenol ICC (FCI) 10127820-0222LF is a Minitek Power4.2 double-row vertical header designed for power-to-board connections. It features 2 positions with a 4.2 mm pitch and brass contacts finished with tin plating. The connector supports a current rating of 9 A and operates within a temperature range of -40°C to +105°C. Constructed with polyamide insulation, it provides an insulation resistance of 1 GOhms.

Feature Summary

• Double-row vertical header configuration for board mounting
• Tin-plated brass contacts ensuring reliable conductivity
• Polyamide insulation material for thermal stability

Applications

• Industrial equipment interconnects
• Power distribution systems
• Factory automation assemblies

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm contact finish and packaging details. Ensure compatibility with mating receptacles in the Minitek Power4.2 series. Confirm lead times and availability directly with authorized distributors as stock levels fluctuate.

Selection Notes

Select this component for applications requiring a low-pin-count, high-current vertical connection. The 4.2 mm pitch accommodates higher current loads compared to smaller pitches. Verify that the PCB layout supports the required through-hole termination and double-row spacing constraints.

Part Context

This part belongs to the Minitek Pwr 4.2 series, which offers robust power solutions for industrial environments. The series includes various pin counts and configurations, providing design flexibility for different power delivery requirements while maintaining consistent mechanical and electrical standards across the family.

Replacement Considerations

Compatible substitutes include other Amphenol FCI headers within the Minitek Power4.2 series, such as 10127820-0822LF or 10127820-1822PTLF, provided the position count and pitch match the design requirements.
