10127820-0422GLF

Overview

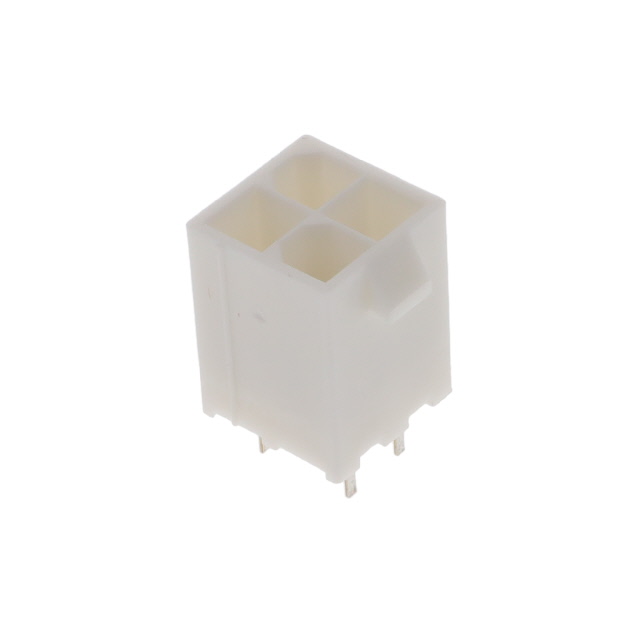

The Amphenol ICC (FCI) 10127820-0422GLF is a Minitek PWR 4.2 vertical header connector designed for power-to-board applications. It features a male contact configuration with four positions arranged in a dual-row layout. The connector utilizes a 4.20mm pitch and is intended for through-hole surface mounting. Tin-plated contacts provide the mating interface, while the housing is constructed from black nylon to ensure electrical insulation and mechanical stability within compact, power-dense electronic assemblies.

Feature Summary

• Vertical pin-and-socket cable-to-board architecture
• Shrouded male header design for secure mating
• Tin-plated contact surfaces for reliable conductivity

Applications

• Compact power-dense electronic systems
• Cable-to-board power distribution
• Industrial equipment interconnects

Procurement Notes

Verify the specific tin plating finish and nylon housing material against the official datasheet to confirm compatibility with environmental requirements. Ensure the through-hole mounting style aligns with the target PCB fabrication capabilities. Cross-reference the four-position count and 4.20mm pitch dimensions to prevent integration errors during assembly planning.

Selection Notes

Select this component when a low-profile, shrouded vertical header is required for power delivery. The 4.20mm pitch accommodates standard wire gauges for moderate current loads. Consider the tin plating for general-purpose use rather than high-corrosion environments. Validate that the through-hole termination method suits the manufacturing process before finalizing the bill of materials.

Part Context

This part belongs to the Minitek PWR 4.2 series by Amphenol ICC (FCI), a line focused on high-density power connections. The series supports various position counts and orientations, offering engineers modular solutions for server, storage, and communication infrastructure where space efficiency and reliable power transmission are critical design constraints.

Replacement Considerations

Direct substitutes must match the 4.20mm pitch, 4-position count, vertical orientation, and through-hole termination. Verify that alternative headers maintain the same shrouded male configuration and tin-plated contact specifications to ensure mechanical and electrical interchangeability without redesigning the PCB footprint.
