Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

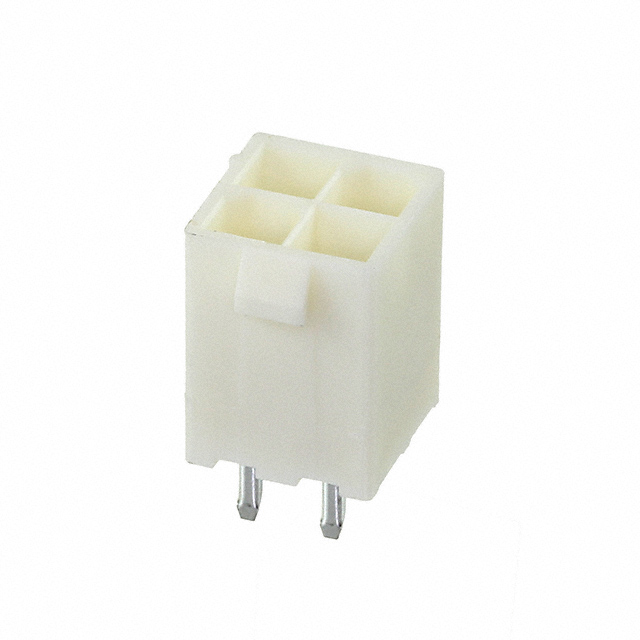

The Amphenol ICC (FCI) part number 10127820-0422LF is a Minitek Power4.2 series power-to-board header. It features a dual-row, vertical through-hole design with four positions and a 4.2 mm pitch. The contacts are made of brass with a tin plating finish. The connector supports an operating temperature range from -40°C to +105°C and has a UL94 V-0 flammability rating. It utilizes a shrouded four-wall housing for alignment and insulation resistance of 1 GOhms.
Feature Summary
- Vertical dual-row through-hole mounting configuration
- Shrouded four-wall housing design
- Tin-plated brass contact system
Applications
- Industrial equipment interconnects
- Power distribution systems
- Factory automation assemblies
Procurement Notes
Verify the specific suffix against official manufacturer documentation to confirm exact pin count and termination style. Confirm current availability status directly with authorized distributors or the manufacturer, as supply chain conditions vary. Ensure compatibility with mating cable harnesses before finalizing procurement orders.
Selection Notes
Select this component when a low-pin-count, high-current vertical interface is required. The 4.2 mm pitch accommodates heavier gauge wires compared to smaller pitch alternatives. Verify that the board layout allows for the specified shrouded footprint and that the tin plating meets environmental requirements for the intended application environment.
Part Context
This connector belongs to the Minitek Power4.2 family, designed for compact power-dense applications. The series offers various position counts while maintaining consistent mechanical dimensions and electrical characteristics. It serves as a reliable interface between power sources and printed circuit boards in industrial and commercial electronics.
Replacement Considerations
Cross-reference with other Minitek Power4.2 headers such as 10127820-1822PTLF for higher pin counts. Verify that any substitute maintains the same 4.2 mm pitch, vertical orientation, and shrouded housing style to ensure mechanical fit and electrical continuity.
