10127820-0422PLF

Overview

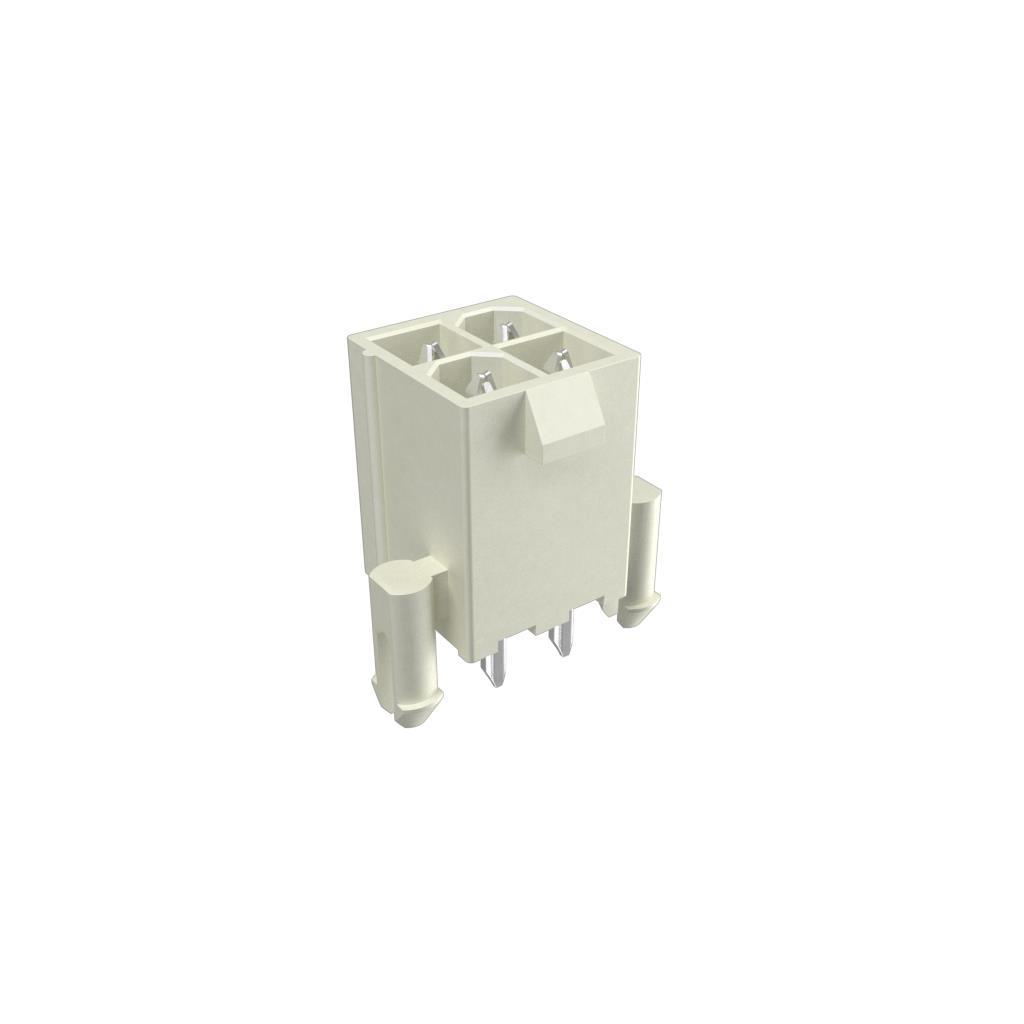

The Amphenol ICC (FCI) part number 10127820-0422PLF is a Minitek Pwr 4.2 series power-to-board connector header. It features a vertical through-hole termination style with four positions arranged in a dual-row configuration. The connector utilizes a 4.2 mm pitch and includes tin-plated contacts. Designed for robust electrical connections, it operates within a temperature range of -40°C to +105°C and meets UL94 V-0 material flammability ratings.

Feature Summary

• Vertical through-hole mounting design for secure board attachment
• Dual-row header configuration accommodating four contact positions
• Tin-plated contacts ensuring reliable conductivity
• High thermal stability supporting operation up to 105°C

Applications

• Industrial instrumentation systems
• Data communications equipment
• Consumer electronics power distribution
• Military grade electronic assemblies

Procurement Notes

Verify the specific ordering suffix PLF against the manufacturer's current datasheet to confirm the tin plating specification. Ensure the vertical header orientation matches the PCB layout requirements. Confirm that the 4.2 mm pitch aligns with the target board footprint dimensions before procurement.

Selection Notes

Select this component when a low-profile, high-current power connection is required in vertical orientations. The 4.2 mm pitch provides ample spacing for higher current applications compared to smaller pitch alternatives. Verify that the tin finish is suitable for the intended soldering process and environmental conditions.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, designed for power distribution in compact electronic systems. The series offers various position counts and termination styles to support diverse board-to-board or cable-to-board power needs within industrial and commercial sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
