Product Detailed Parameters

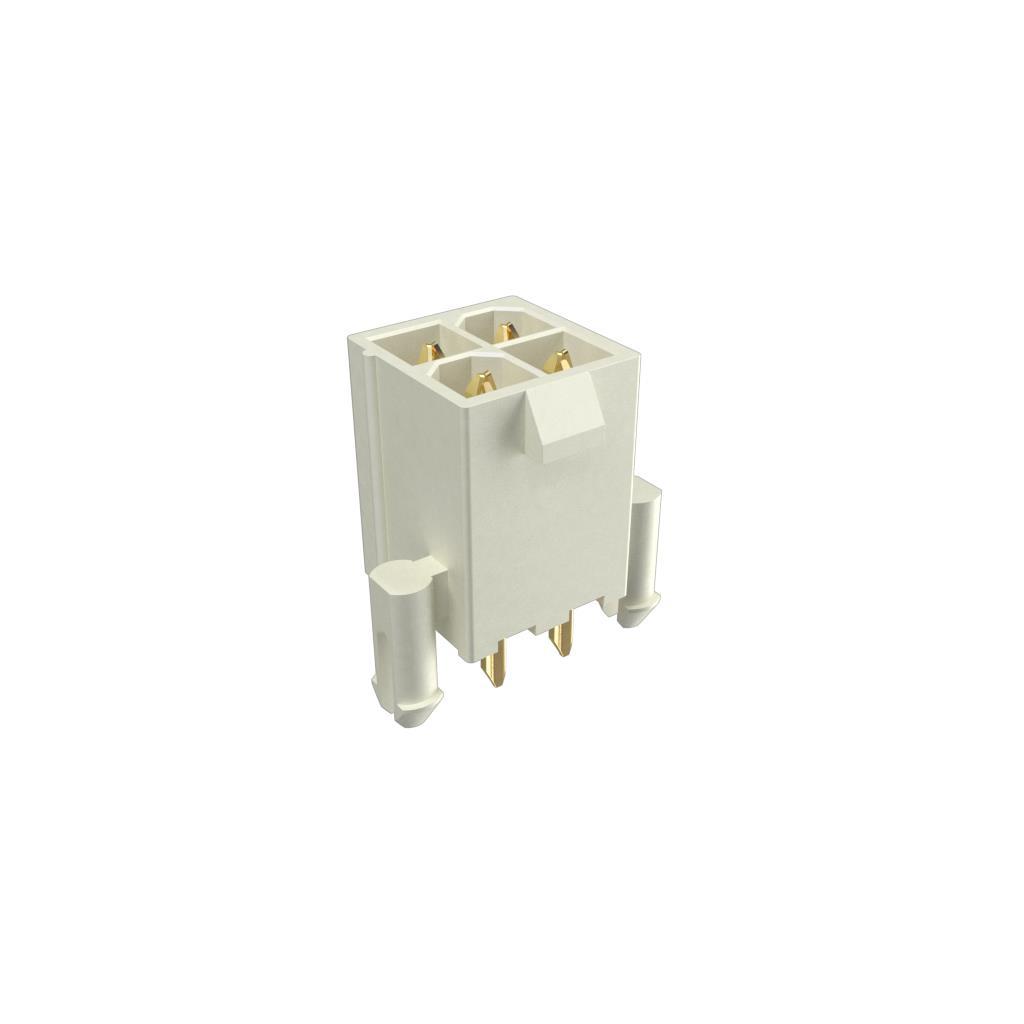

- Description：10127820-0424PLF-MTK 4.2 04P DR
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10127820-0424PLF is a Minitek Power4.2 series power-to-board connector header. It features a dual-row vertical design with four positions and a 4.2 mm pitch. The contacts are made of brass with gold plating, rated for 9 A current. Operating temperature ranges from -40°C to +105°C, with an insulation resistance of 1 GOhms.
Feature Summary
- Dual-row vertical header configuration for board mounting
- Gold-plated brass contacts ensuring reliable conductivity
- High current rating suitable for power distribution applications
Applications
- Power distribution in industrial equipment
- Server and storage system interconnects
- Communication device power connections
Procurement Notes
Verify the specific suffix PLF against official datasheets to confirm packaging and material specifications. Ensure compatibility with mating receptacles within the Minitek Power4.2 family. Confirm environmental ratings match operational requirements before procurement.
Selection Notes
Select this component for high-current power delivery where vertical space is limited. The 4.2 mm pitch supports robust power traces. Verify that the 9 A rating per contact meets circuit demands. Ensure PCB layout accommodates the dual-row vertical footprint.
Part Context
This connector belongs to the Minitek Power4.2 series by Amphenol ICC (formerly FCI). The series is designed for power-to-board applications requiring high reliability. It integrates into broader interconnect systems for industrial and data communication sectors.
Replacement Considerations
Compatible substitutes include other Minitek Power4.2 headers with matching pin counts and pitch. Verify mechanical dimensions and electrical ratings before substitution.
