Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

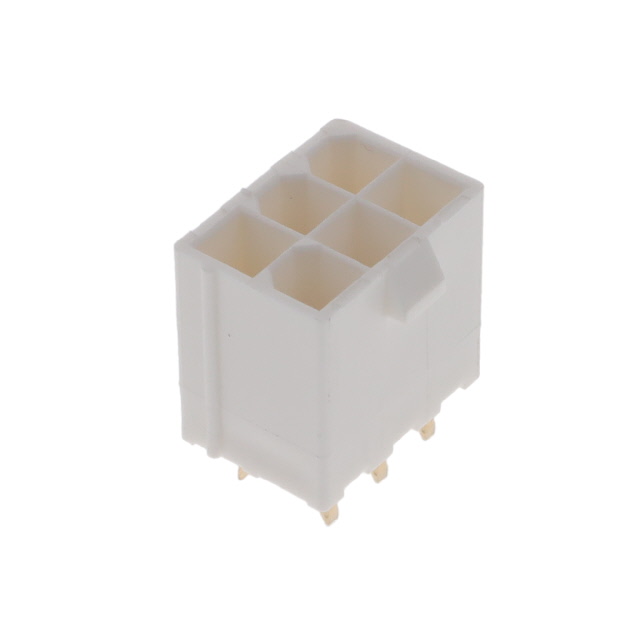

The Amphenol ICC (FCI) part number 10127820-0621GLF is a Minitek Power4.2 series power connector designed for board-to-board applications. It features a vertical through-hole header configuration with six positions arranged in a dual-row layout. The connector utilizes brass contact materials finished with gold plating to ensure reliable conductivity and corrosion resistance. It supports a voltage rating of 600V and operates within a temperature range of -40°C to +105°C. The housing is constructed from natural-colored nylon, providing structural integrity and compliance with UL94 V-0 flammability standards.
Feature Summary
- Vertical through-hole mounting design for secure PCB integration
- Gold-plated brass contacts for enhanced signal and power transmission
- Dual-row arrangement optimizing space efficiency on the circuit board
Applications
- Power distribution systems in industrial equipment
- Server and storage device internal power connections
- Communication infrastructure hardware assembly
Procurement Notes
Verify that the specific suffix GLF corresponds to the tin-plated contact finish variant as documented in official manufacturer specifications. Confirm that the natural housing color matches project requirements. Ensure compatibility with the intended mating power receptacle before finalizing procurement orders to prevent interface mismatches.
Selection Notes
Select this component when a robust, high-voltage power connection is required in a vertical orientation. The 4.2mm pitch accommodates higher current loads compared to smaller pitch connectors. Consider the through-hole termination method if mechanical strength during soldering is prioritized over surface-mount profile constraints.
Part Context
This connector belongs to the Minitek Power4.2 family, a line of power connectors engineered by Amphenol ICC (formerly FCI). The series is characterized by its ability to handle significant power densities while maintaining a compact footprint. It is widely utilized in sectors demanding durable electrical interconnects capable of withstanding rigorous operational environments.
Replacement Considerations
Direct substitutes are not explicitly confirmed in public documentation. Verify cross-compatibility with other Minitek Power4.2 headers regarding pin count, pitch, and row configuration before considering alternative part numbers.
