Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

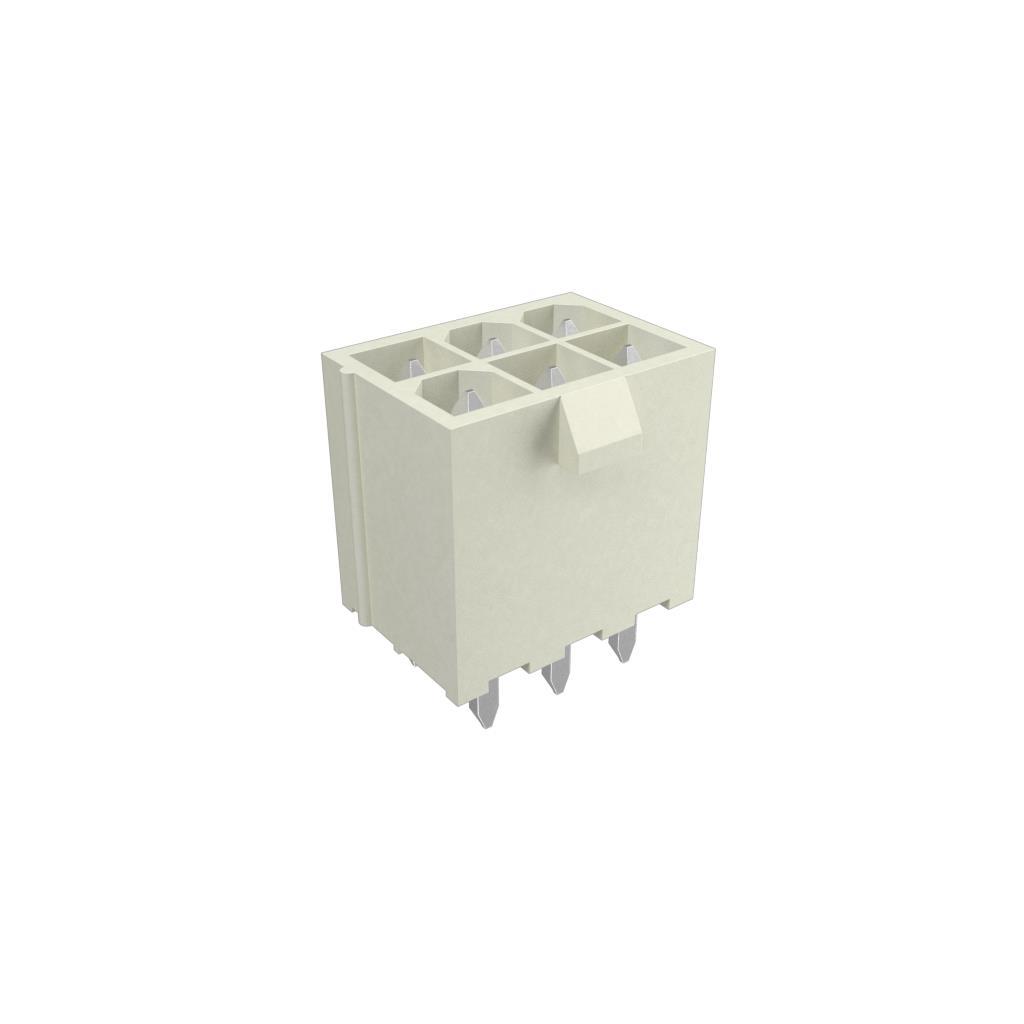

The 10127820-0622GLF is a vertical header connector from the Minitek Power4.2 series by Amphenol ICC (FCI). It features 6 positions with a 4.2 mm pitch and double row configuration. The contacts are gold-plated brass pins designed for through-hole termination. Rated for 9 A current and 600 VAC, it operates within a temperature range of -40°C to +105°C. The housing is natural-colored nylon, providing insulation resistance of 1 GOhms.
Feature Summary
- Double row vertical header design for board-to-board power distribution
- Gold-plated brass contacts ensure reliable conductivity and corrosion resistance
- High voltage rating of 600 VAC supports demanding power applications
- Through-hole solder pin termination secures stable mechanical connection
Applications
- Power distribution in server systems
- Storage device internal connections
- Communication equipment power interfaces
Procurement Notes
Verify the specific suffix GLF against official datasheets to confirm plating thickness and material specifications. Ensure the vertical orientation matches the PCB layout requirements. Cross-reference the 4.2mm pitch with mating connectors to guarantee compatibility. Confirm the natural nylon housing meets environmental standards for the intended operating temperature range.
Selection Notes
Select this component when high current capacity and elevated voltage ratings are required for compact power delivery. The 4.2mm pitch allows for robust trace spacing on PCBs. Consider the vertical profile for space-constrained assemblies where height is not limited. Verify that the through-hole mounting method aligns with the manufacturing process capabilities.
Part Context
This part belongs to the Minitek Power4.2 series, engineered for high-power board-to-board applications. The series integrates power and signal contacts suitable for servers and storage devices. Amphenol ICC (FCI) designs these connectors to withstand harsh environments while maintaining signal integrity and low insertion force characteristics typical of their industrial portfolio.
Replacement Considerations
Consult official substitution lists for equivalent vertical headers with matching 4.2mm pitch and 6-position count. Verify that alternative parts meet the same 600VAC and 9A ratings. Ensure contact plating and housing material specifications remain compatible with existing assembly processes.
