10127820-0622GPLF

Overview

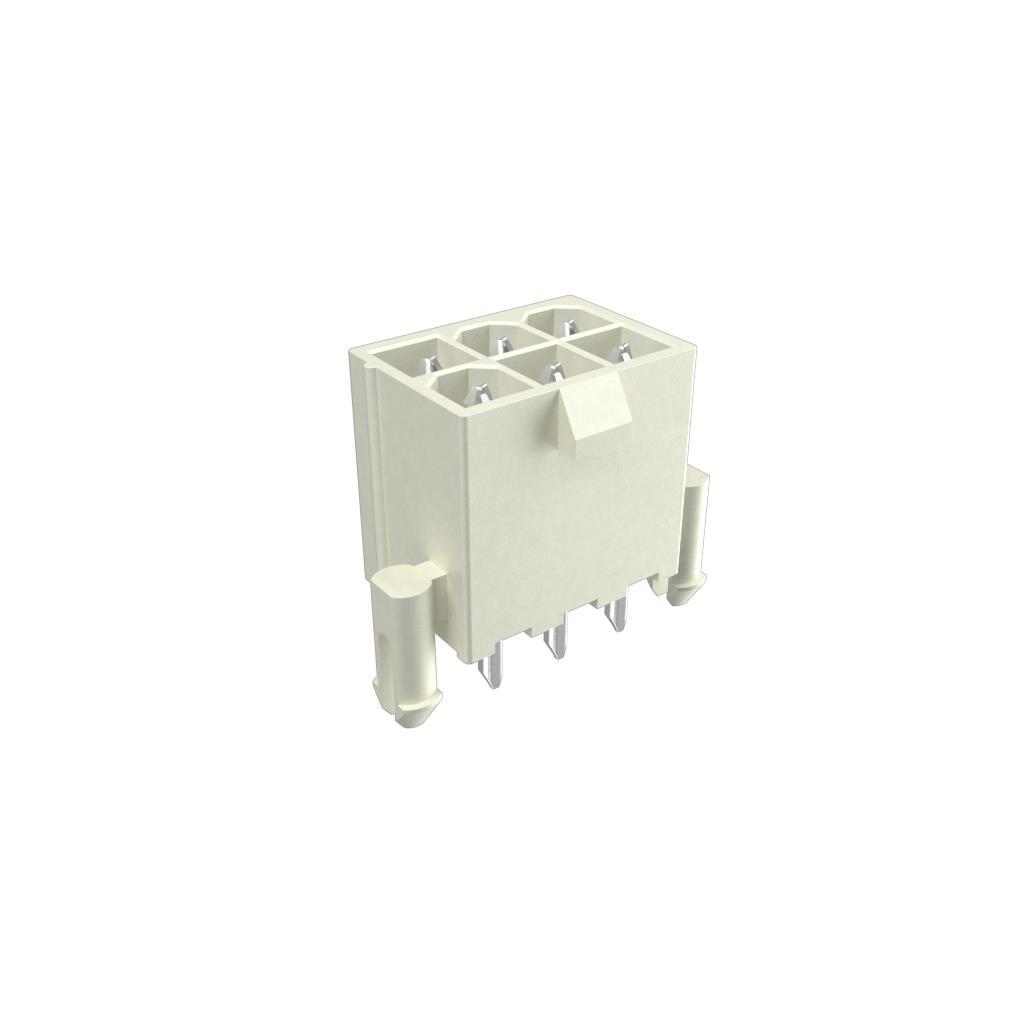

The 10127820-0622GPLF is a Minitek Power4.2 double-row vertical header manufactured by Amphenol ICC (FCI). It features six positions with a 4.2 mm pitch and tin-plated brass contacts. The connector supports a current rating of 9 A and operates within a temperature range of -40°C to +105°C. Designed for power-to-board applications, it utilizes natural insulation material rated UL94 V-0 and offers an insulation resistance of 1 GOhms.

Feature Summary

• Vertical surface mount design for direct board integration
• Double-row configuration supporting high-density power distribution
• Tin-plated contacts ensure reliable electrical connectivity

Applications

• Power distribution in server systems
• Storage device internal connections
• Communication equipment power interfaces

Procurement Notes

Verify the specific contact plating finish against project requirements, as tin variants differ from gold-plated counterparts in the same series. Confirm that the 4.2 mm pitch aligns with the mating card edge or cable assembly specifications. Ensure the vertical height and mounting style are compatible with the target PCB layout and enclosure constraints before finalizing procurement orders.

Selection Notes

Select this component when a robust, high-current vertical interconnect is required for power delivery rather than signal transmission. The 4.2 mm pitch provides ample spacing for higher voltage isolation compared to smaller pitch alternatives. Consider the tin plating for cost-sensitive applications where extreme corrosion resistance is not the primary driver, while maintaining standard industrial durability.

Part Context

This part belongs to the Minitek Power4.2 series, designed specifically for power-to-board connections. It complements other headers in the family by offering a standardized vertical form factor. The series is widely used in infrastructure hardware where reliable power delivery and mechanical stability are critical for long-term system operation.

Replacement Considerations

Compatible substitutes include 10127820-0621TLF for gold-plated versions and 10127820-1822GTLF for higher pin counts. Verify that any replacement maintains the 4.2 mm pitch and double-row vertical orientation to ensure mechanical and electrical compatibility.
