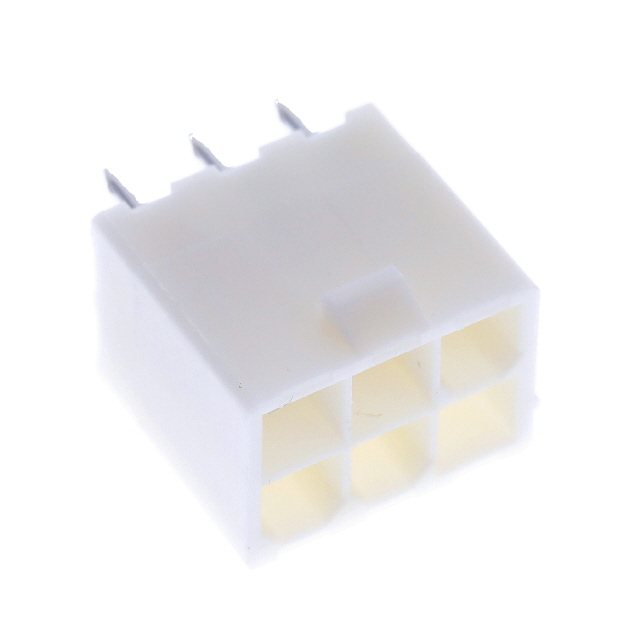

10127820-0622LF

$0.48

Description：CONN HEADER VERT 6POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:1a4125b374e4 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 6POS 4.2MM
Series：Minitek® Pwr 4.2
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：80.0µin (2.03µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10127820-0622LF

Overview

The Amphenol ICC (FCI) part number 10127820-0622LF is a Power to the Board header connector from the Minitek Pwr 4.2 series. It features a vertical through-hole mounting style with a 4.2 mm pitch and six positions. The connector utilizes brass contacts with tin plating, rated for 9 A current and 600 VAC voltage. Designed for high-power applications, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 1 GOhms.

Feature Summary

Vertical through-hole termination for secure board attachment
High current capacity suitable for power distribution
Tin-plated brass contacts for reliable conductivity

Applications

Industrial power distribution systems
Factory automation equipment
Alternative energy generation units

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct contact plating and housing material specifications. Confirm that the vertical orientation and through-hole termination align with the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-current vertical interconnect is required for power boards. The 4.2 mm pitch accommodates higher amperage loads compared to standard signal headers. Ensure the operating environment remains within the specified thermal limits to maintain long-term connection integrity.

Part Context

This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), designed specifically for power-to-board applications. The series provides robust solutions for industrial and commercial electronics requiring reliable high-current connections in compact form factors.
