Product Detailed Parameters
- Description：10127820-0624GLF-MTK 4.2 06P DR
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyamide (PA), Nylon
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

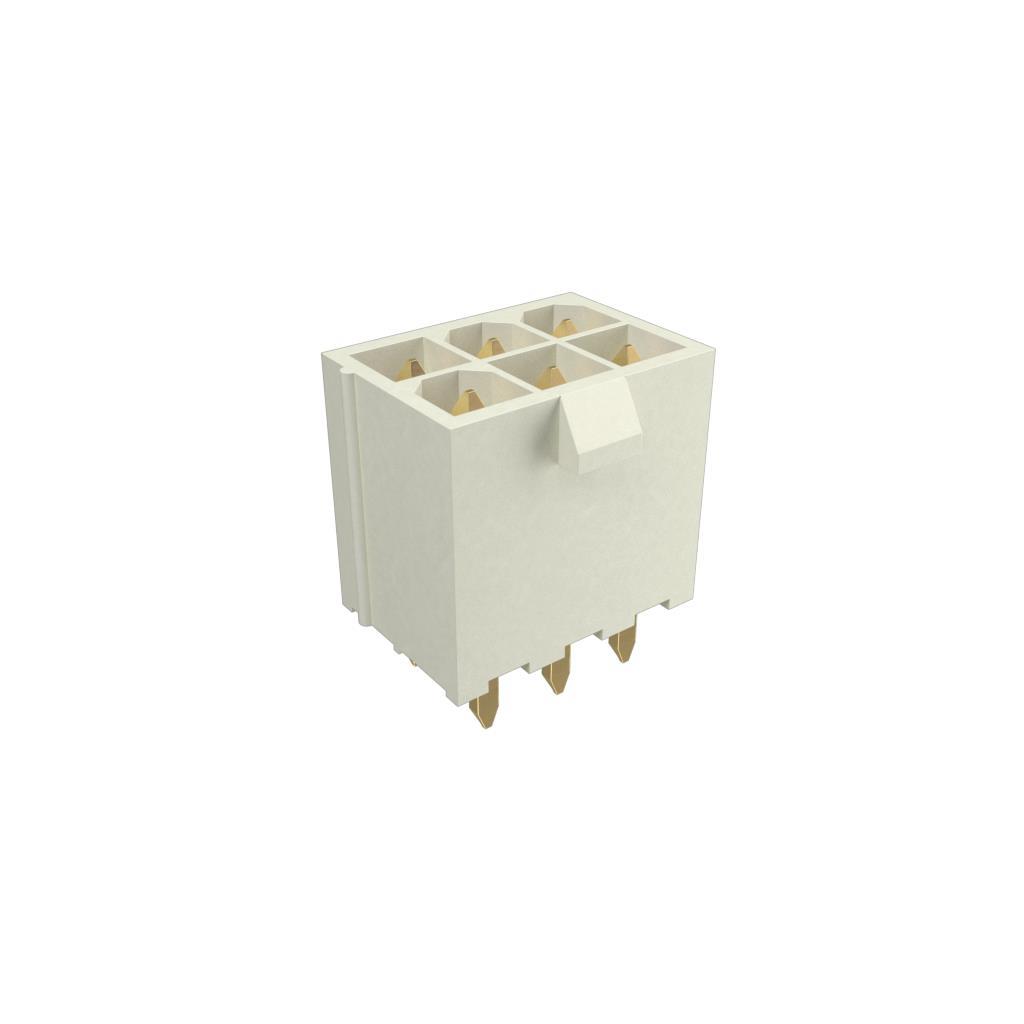

The Amphenol ICC (FCI) 10127820-0624GLF is a Minitek Power 4.2 series power-to-board header featuring a 4.2 mm pitch and 6 positions. It utilizes a double row vertical through-hole design with brass contacts plated in gold. The connector supports a current rating of 9 A and operates within a temperature range of -40°C to +105°C. Constructed with natural insulation, it meets UL94 V-0 flammability standards and offers glow wire compliance for enhanced safety.
Feature Summary
- Glow wire compliant construction for enhanced thermal safety
- Vertical double-row through-hole mounting configuration
- Gold-plated brass contacts ensuring reliable conductivity
Applications
- Power distribution in server infrastructure
- Storage device internal power connections
- Communication equipment board interfaces
Procurement Notes
Verify the specific contact plating thickness and material composition against the official datasheet before integration. Confirm that the natural insulation color and UL94 V-0 rating align with project requirements. Ensure compatibility with mating receptacles from the same Minitek Power 4.2 family to maintain mechanical integrity.
Selection Notes
Select this component when a vertical, high-current power interface is required with a 4.2 mm spacing. The 6-position count suits applications needing balanced power delivery without excessive footprint usage. Verify that the operating temperature range and glow wire compliance meet the environmental specifications of the target system.
Part Context
This part belongs to the Minitek Power 4.2 series, designed for robust power delivery in compact electronic assemblies. The series emphasizes durability and signal integrity under demanding conditions. As an FCI product, it integrates into broader connectivity solutions for industrial and data center environments.
Replacement Considerations
Substitute only with other 10127820-xxxxx variants from the Minitek Power 4.2 series that match the 6-position count and vertical orientation. Cross-series replacements require verification of pitch, current rating, and mechanical locking features.
