Product Detailed Parameters
- Description：CONN PWR4.2 VT HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

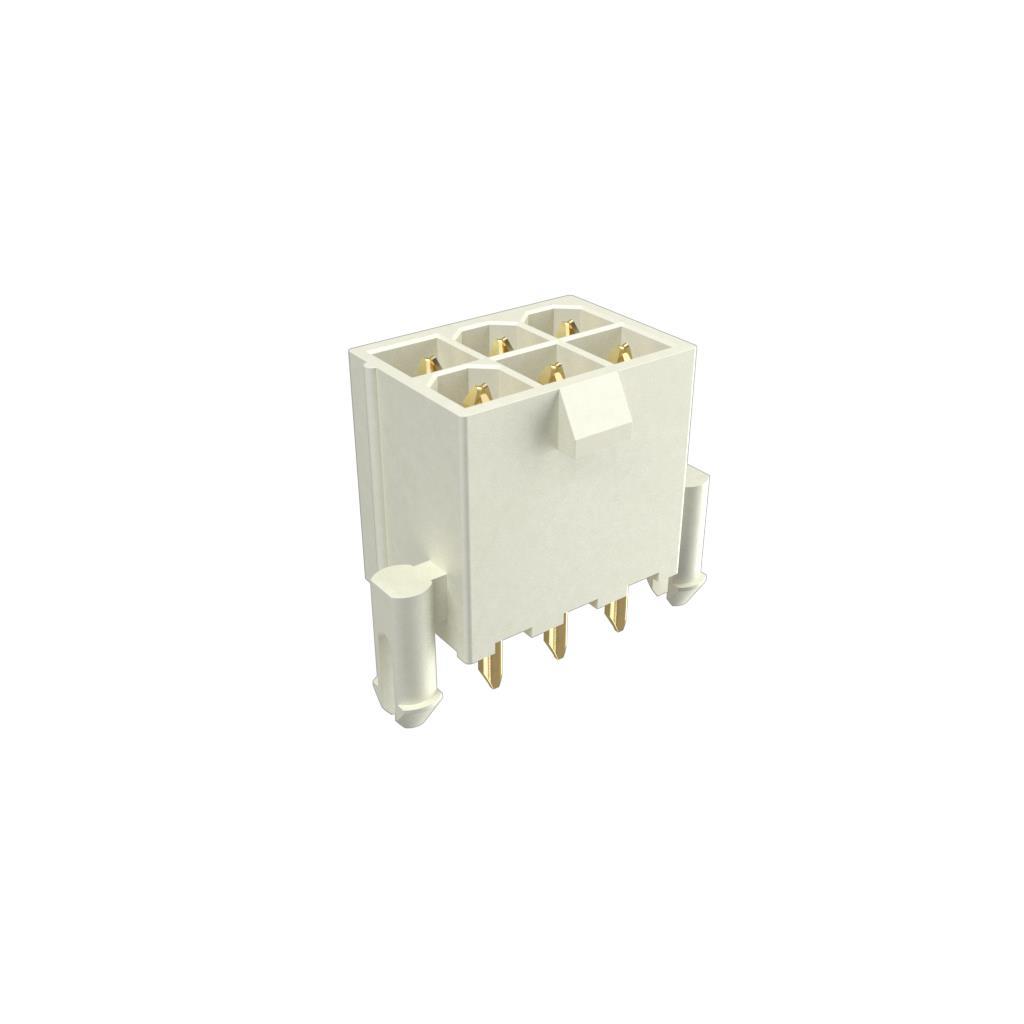

The Amphenol ICC (FCI) 10127820-0624PLF is a Minitek Power4.2 series power-to-board header. It features a 4.2 mm pitch and a dual-row arrangement with six positions. The connector utilizes brass contacts with gold plating for reliable conductivity. Designed for vertical through-hole mounting, it supports a current rating of 9 A. The operating temperature range spans from -40°C to +105°C, ensuring stability in demanding environments.
Feature Summary
- Vertical through-hole mounting configuration for secure board integration
- Gold-plated brass contacts ensure durable electrical connectivity
- Dual-row design accommodates high-density power distribution requirements
Applications
- Power distribution systems
- Industrial equipment
- Data processing infrastructure
Procurement Notes
Verify the specific suffix PLF against official datasheets to confirm lead-free compliance and RoHS status. Ensure the selected variant matches the required contact count and row configuration for the target PCB layout. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and current production status before finalizing procurement orders.
Selection Notes
Select this component when a robust power connection with a 4.2 mm spacing is required. The dual-row header format suits applications needing higher current capacity within a compact footprint. Verify that the vertical orientation aligns with the mechanical constraints of the assembly. Confirm that the thermal ratings meet the operational environment specifications.
Part Context
This component belongs to the Minitek Power4.2 family, designed for power-to-board connections. The series emphasizes durability and high current handling capabilities. Amphenol FCI manufactures these connectors to support industrial and data communication applications requiring reliable interconnect solutions under various environmental conditions.
Replacement Considerations
Compatible substitutes include other Minitek Power4.2 headers with identical pin counts and pitch. Verify that alternative parts maintain the same vertical mounting style and contact material specifications to ensure mechanical and electrical compatibility.
