Product Detailed Parameters
- Description：CONN PWR 4.2 VT HEADER
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

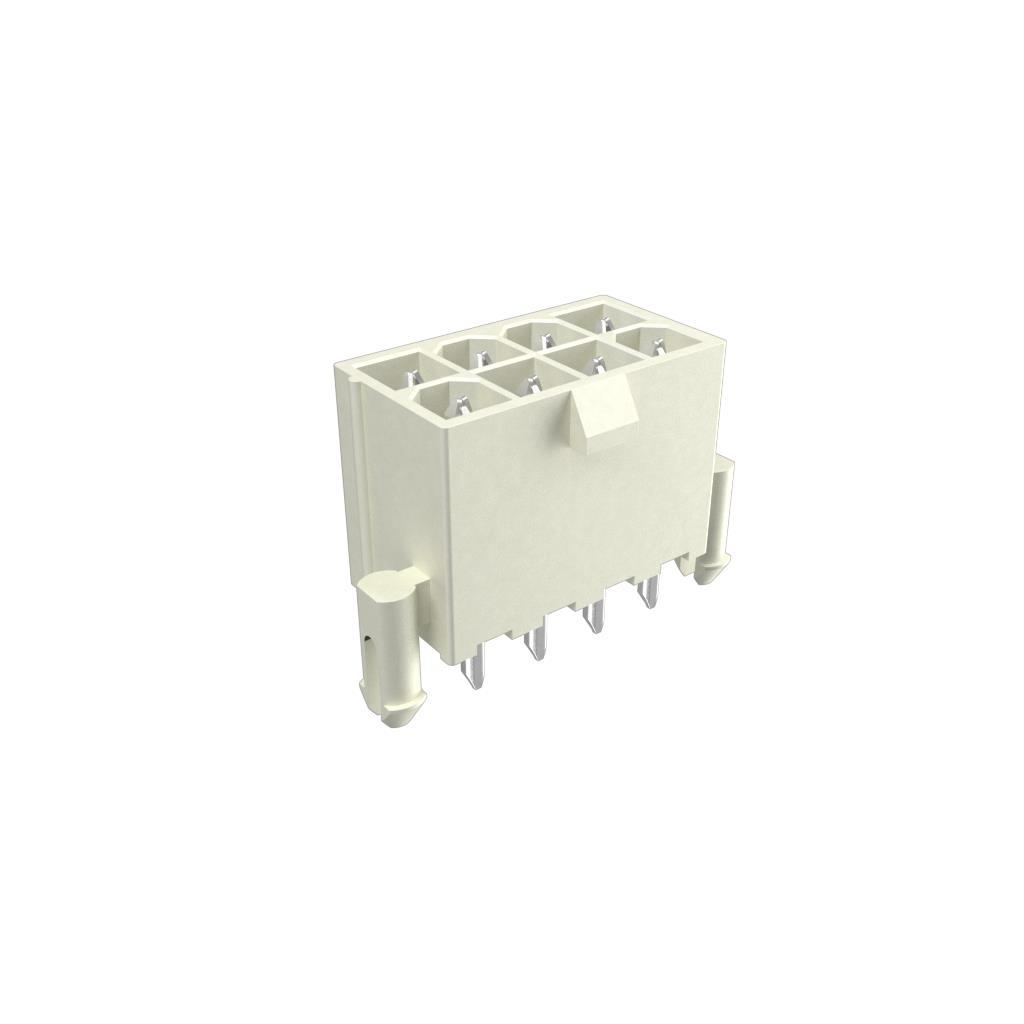

The Amphenol ICC (FCI) part number 10127820-0822GPLF is a Minitek Power4.2 series vertical header connector designed for power-to-board applications. It features an 8-position configuration with a 4.2 mm pitch and dual-row arrangement. The contacts are constructed from brass and finished with a gold plating to ensure reliable conductivity. Rated for 9 A current, the component operates within a temperature range of -40°C to +105°C. It utilizes a natural-colored insulator and meets UL94 V-0 flammability standards.
Feature Summary
- Vertical through-hole mounting design for secure board attachment
- Gold-plated brass contacts for enhanced corrosion resistance
- High current rating suitable for power distribution networks
Applications
- Server and storage equipment power distribution
- Industrial control system power interfaces
- Data communication hardware power connections
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm contact plating and material specifications. Ensure compatibility with mating receptacles regarding pitch and row configuration. Confirm RoHS compliance status and lead-free requirements prior to procurement to align with project environmental standards.
Selection Notes
Select this component when a high-current vertical power interface is required. The 4.2 mm pitch accommodates substantial wire gauges compared to signal headers. Verify that the 9 A current rating per position meets the circuit load requirements. Ensure the vertical orientation fits the mechanical constraints of the assembly enclosure.
Part Context
This connector belongs to the Minitek Power4.2 family, engineered for robust power delivery in compact spaces. The series supports various pin counts and termination styles. It is widely utilized in infrastructure equipment where reliability under thermal stress is critical. The product line emphasizes durability and ease of assembly for mass production environments.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 8-position count, dual-row layout, and vertical orientation. Contact material and plating thickness should be verified for equivalent electrical performance. Mechanical footprint dimensions must align precisely with existing PCB layouts.
