10127820-0822LF

Overview

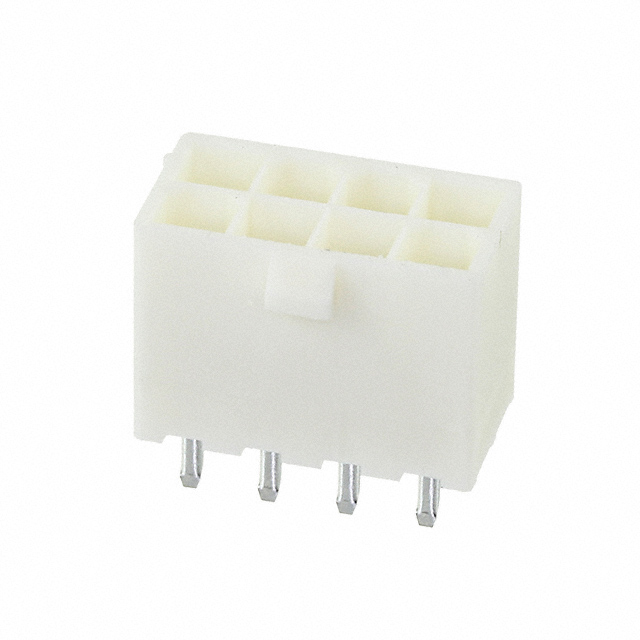

The Amphenol ICC (FCI) 10127820-0822LF is a Minitek Power4.2 series header connector designed for power-to-board applications. It features an 8-position, dual-row configuration with a 4.2 mm pitch. The contacts are constructed from brass and finished with tin plating to ensure reliable conductivity. Rated for 9 A current at +105 °C maximum operating temperature, this vertical through-hole component provides robust electrical interconnection for industrial and commercial systems requiring high-current power distribution.

Feature Summary

• Vertical through-hole mounting for secure board attachment
• Tin-plated brass contacts for corrosion resistance
• Dual-row header design supporting 9 A current rating

Applications

• Industrial equipment power distribution
• Factory automation control systems
• Alternative energy generation units

Procurement Notes

Verify the specific suffix 'LF' indicates lead-free compliance and confirm the tin plating specification against the official datasheet. Ensure the 4.2 mm pitch and 8-position count match the target PCB footprint requirements before finalizing procurement orders.

Selection Notes

Select this component when a vertical, through-hole power header with a 4.2 mm pitch is required. The 9 A rating and tin finish suit general industrial environments. Verify that the dual-row layout fits within the available board space and aligns with the mating socket or cable assembly specifications.

Part Context

This part belongs to the Minitek Power4.2 series, which offers various pin counts and configurations for power delivery. The 10127820 prefix identifies the specific housing and contact arrangement within this family of vertical headers designed for high-current applications.

Replacement Considerations

Cross-reference other Amphenol FCI parts within the 10127820 series for different pin counts. Verify mechanical compatibility and electrical ratings before substituting with generic equivalents.
