10127820-0824LLF

Overview

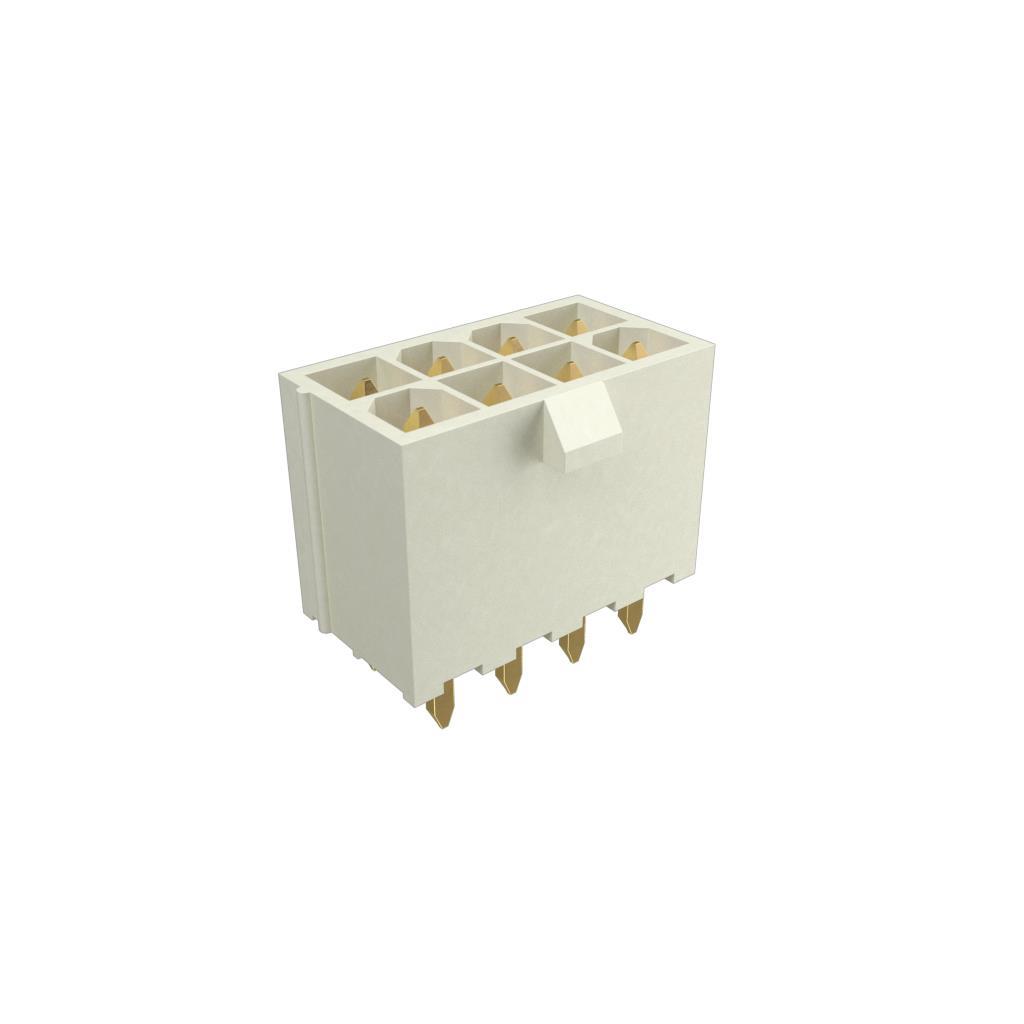

The Amphenol ICC (FCI) 10127820-0824LLF is a Minitek Power4.2 series power-to-board connector header. It features an 8-position, dual-row vertical through-hole design with a 4.2 mm pitch. The contacts are made of brass and plated with tin. Rated for 9 A current at +105 °C maximum operating temperature, it provides reliable power distribution in compact board layouts.

Feature Summary

• Vertical through-hole mounting for secure PCB attachment
• Dual-row configuration to maximize contact density
• Tin-plated brass contacts for corrosion resistance

Applications

• Power distribution in industrial equipment
• Server and storage system power interfaces
• Communication device power connections

Procurement Notes

Verify the specific suffix 'LLF' against official datasheets to confirm tin plating and lead-free status. Ensure compatibility with mating sockets regarding row alignment and pitch. Confirm RoHS compliance requirements with the manufacturer before finalizing procurement specifications.

Selection Notes

Select this component when a low-profile, high-current power connection is required. The 4.2 mm pitch allows for higher current capacity compared to smaller pitches. Verify that the 9 A rating meets the circuit's thermal and electrical demands under expected operating conditions.

Part Context

This part belongs to the Minitek Power4.2 family, designed for robust power delivery. It complements other positions in the same series, such as 6 or 18-position variants, allowing designers to scale power interfaces while maintaining consistent mechanical and electrical characteristics across the assembly.

Replacement Considerations

Direct substitutes include other 8-position, 4.2 mm pitch, dual-row headers from Amphenol FCI. Cross-brand replacements require matching pitch, row count, and current rating. Verify that alternative parts support the same vertical through-hole termination method.
