Product Detailed Parameters

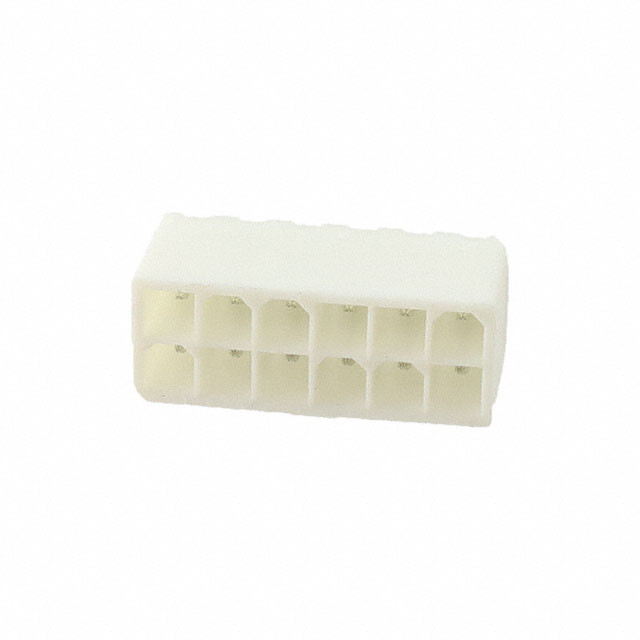

- Description：CONN HEADER VERT 12POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The 10127820-1222LF is a Minitek Pwr 4.2 series header connector manufactured by Amphenol ICC (FCI). It features a vertical orientation with male pin contacts and a 4.20mm pitch. The unit provides 12 positions for board-to-board power interconnection. Constructed with brass terminals, it supports reliable electrical performance in industrial applications requiring robust power distribution.
Feature Summary
- Vertical header design for direct board mounting
- Minitek Pwr 4.2 series architecture for power distribution
- Male pin contact configuration for secure mating
Applications
- Industrial equipment power distribution
- Factory automation systems
- Heavy machinery control boards
Procurement Notes
Verify the specific suffix requirements against official Amphenol documentation to ensure correct termination style and plating options. Confirm that the 12-position count matches the target PCB footprint. Cross-reference the Minitek Pwr 4.2 series specifications to validate compatibility with mating receptacles. Ensure environmental ratings meet the operational temperature range of the intended application.
Selection Notes
Select this component when a vertical, high-current power header is required for industrial environments. The 4.20mm pitch accommodates higher current loads compared to signal connectors. Verify that the brass terminal material and tin plating are suitable for the operating conditions. Ensure the 12-position layout aligns with the system's power rail requirements.
Part Context
This part belongs to the Minitek Pwr 4.2 series, designed for power-to-board applications. Amphenol ICC (FCI) produces these connectors to meet rigorous industrial standards. The series offers various position counts and configurations to support diverse power distribution needs in demanding electronic assemblies.
Replacement Considerations
Consult official Amphenol cross-reference guides for verified substitute part numbers. Ensure any replacement maintains the 4.20mm pitch and vertical form factor. Validate that alternative headers meet the same current carrying capacity and mechanical retention standards.
