10127820-1421LF

Overview

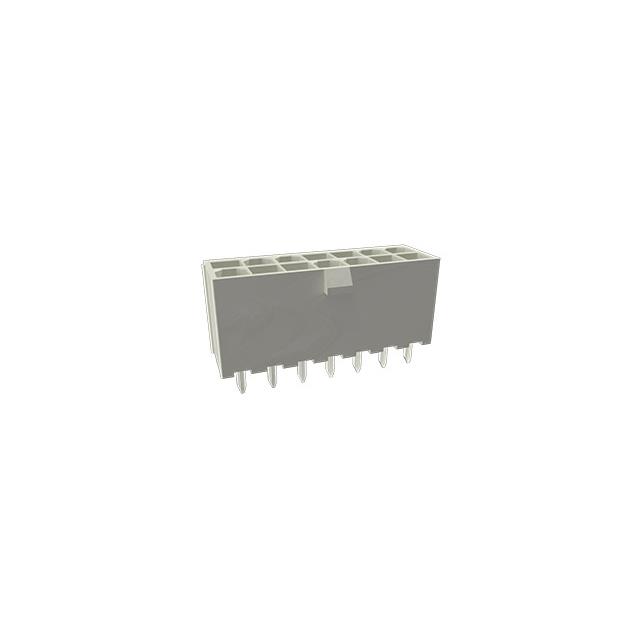

The Amphenol ICC (FCI) part number 10127820-1421LF is a Minitek Power 4.2 series header connector designed for power-to-board applications. It features a vertical surface mount configuration with 14 positions arranged in a dual-row layout. The connector utilizes brass contacts with gold plating to ensure reliable electrical performance and corrosion resistance. Designed for high-current distribution, this component supports a row spacing of 4.2 mm and operates within a temperature range of -40°C to +105°C. It is suitable for robust power delivery in industrial and communication equipment.

Feature Summary

• Vertical board-to-board mounting style for compact system integration
• Dual-row contact arrangement providing high-density power distribution
• Gold-plated brass contacts ensuring stable conductivity and durability
• High flammability rating insulation material for enhanced safety

Applications

• Industrial control systems requiring reliable power headers
• Communication infrastructure equipment
• Server and storage device power distribution boards

Procurement Notes

Verify the specific ordering suffix and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the vertical header orientation matches the PCB design requirements. Ensure the gold plating specification meets the environmental conditions of the target application. Cross-reference the datasheet for exact mechanical dimensions to guarantee proper fitment on the assembly line.

Selection Notes

Select this component when a vertical, dual-row power header with a 4.2 mm pitch is required. Consider the 14-position count and current carrying capacity relative to the circuit load. Evaluate the operating temperature range against the expected thermal environment. Compare alternative series if different mounting angles or contact materials are necessary for the specific design constraints.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, which specializes in high-power interconnect solutions. The series is engineered for demanding environments where signal integrity and power stability are critical. Amphenol ICC (FCI) designs these components to meet rigorous industry standards for durability and electrical performance in heavy-duty applications.

Replacement Considerations

Check for direct substitutes within the same Minitek Pwr 4.2 series with compatible pin counts. Verify mechanical compatibility with existing PCB footprints. Ensure equivalent electrical ratings and material specifications are maintained during substitution.
