Product Detailed Parameters
- Description：CONN HEADER VERT 16POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

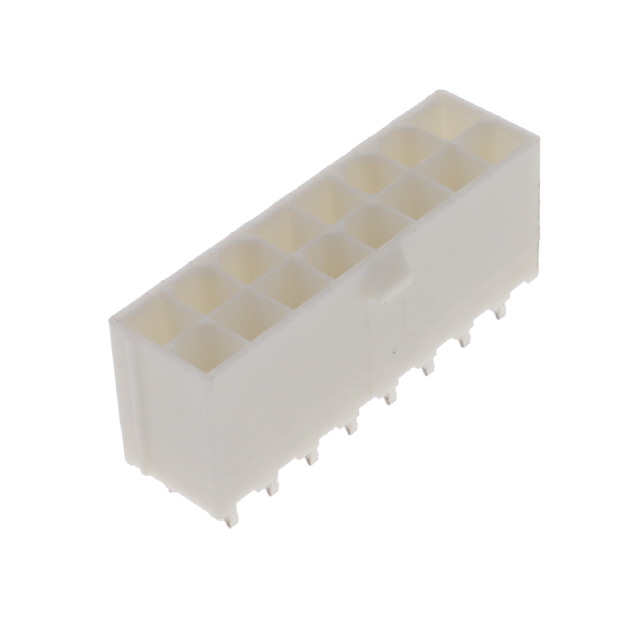

The Amphenol ICC (FCI) 10127820-1622LF is a Minitek Power4.2 series header designed for power-to-board applications. It features a dual-row vertical through-hole configuration with 16 positions and a 4.2 mm pitch. The connector utilizes brass contacts with tin plating, rated for 9 A current. It operates within a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards.
Feature Summary
- Vertical through-hole mounting style for direct board integration
- Dual-row design providing high-density power distribution
- Tin-plated brass contacts ensuring reliable conductivity
Applications
- Power supply modules requiring robust interconnects
- Industrial control systems with high current demands
- Telecommunications infrastructure equipment
Procurement Notes
Verify the specific suffix requirements against the manufacturer's latest documentation to ensure compatibility with intended assembly processes. Confirm that the tin-plated contact finish aligns with soldering material specifications. Check for any regional distribution restrictions or obsolescence notices prior to finalizing procurement plans.
Selection Notes
Select this component when a vertical, dual-row power header with a 4.2 mm pitch is required. Ensure the application environment stays within the specified -40°C to +105°C operating range. Verify that the PCB layout accommodates the through-hole termination style and the physical dimensions of the 16-position housing.
Part Context
This part belongs to the Minitek Power4.2 family, which offers various configurations for power delivery. The series supports different pin counts and contact finishes to suit diverse industrial and commercial needs. It serves as a standard solution for connecting power sources to circuit boards in compact spaces.
Replacement Considerations
Direct substitutes include other 16-position, 4.2 mm pitch dual-row headers from the same Minitek Power4.2 line, such as the 10127820-1822PTLF variant, provided the contact finish and current rating meet the design requirements.
