Product Detailed Parameters
- Description：CONN HEADER VERT 18POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

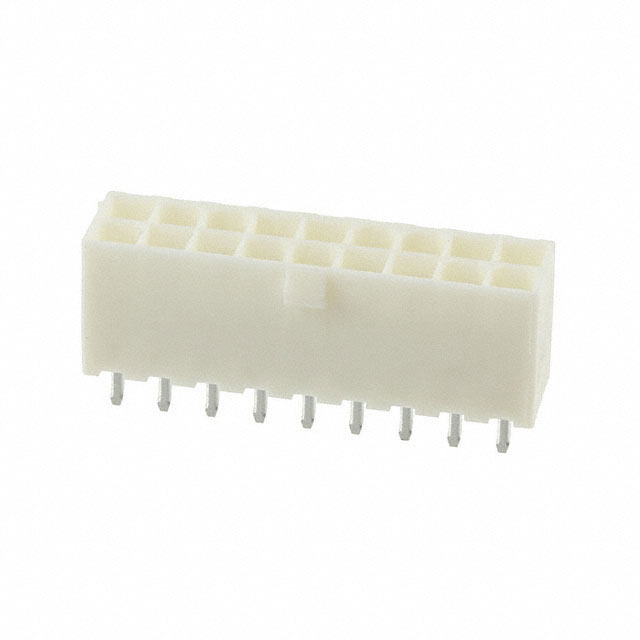

The Amphenol ICC (FCI) 10127820-1822LF is a Minitek Power4.2 double-row vertical through-hole header designed for power-to-board applications. It features 18 positions with a 4.2 mm pitch and supports a current rating of 9 A. The connector utilizes brass contacts with tin plating and operates within a temperature range of -40°C to +105°C. It offers an insulation resistance of 1 GOhms and is housed in natural-colored material.
Feature Summary
- Double-row vertical through-hole design for board mounting
- Tin-plated brass contacts for reliable conductivity
- High insulation resistance ensuring electrical safety
Applications
- Power distribution on printed circuit boards
- Industrial equipment interconnects
- Consumer electronics power modules
Procurement Notes
Verify the specific suffix requirements against official datasheets before ordering, as variations exist between tin and gold plating options. Confirm lead times and factory order constraints directly with the manufacturer or authorized distributors, as availability may vary by region. Ensure compatibility with mating sockets regarding pitch and row configuration.
Selection Notes
Select this component when a 4.2 mm pitch double-row header is required for high-current power delivery. Compare contact plating options; this model uses tin, while alternatives like 10127820-1824LCLF offer gold plating. Verify that the 9 A current rating and 105°C temperature limit meet the system's thermal and electrical demands.
Part Context
This part belongs to the Minitek Pwr 4.2 series, which provides robust power connectivity solutions. It is distinct from the Minitek Pwr 3.0 series, which utilizes a smaller 3.0 mm pitch. The product line focuses on durable connectors for demanding electronic environments.
Replacement Considerations
The 10127820-1824LCLF serves as a direct substitute with identical mechanical specifications but features gold plating instead of tin. Other pin counts in the same series, such as 10127820-2224GLF, share the same pitch and form factor but differ in position quantity.
