Product Detailed Parameters
- Description：CONN HEADER VERT 20POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

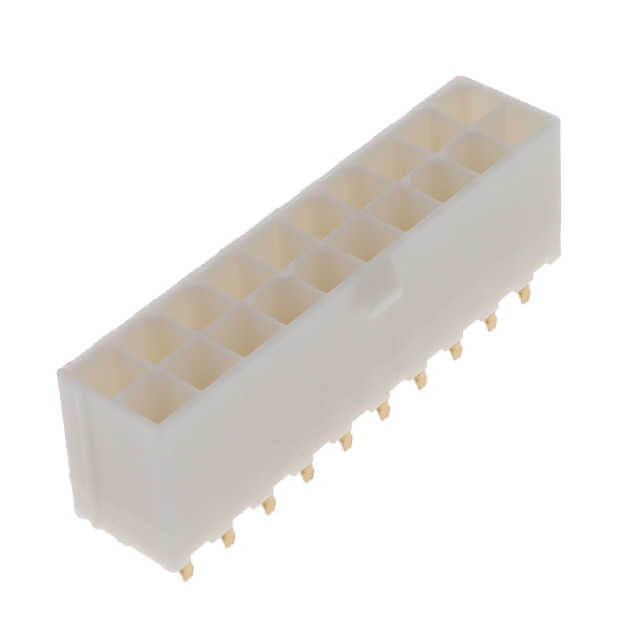

The 10127820-2021LF is a Minitek Power4.2 series header manufactured by Amphenol ICC (FCI). It features a 20-position, dual-row vertical through-hole design with a 4.2 mm pitch. The connector utilizes brass contacts with gold plating and a natural polyamide insulation body rated UL94 V-0. It supports a current rating of 9 A and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual-row vertical power header configuration
- Gold-plated brass contact system for conductivity
- Polyamide insulation housing with UL94 V-0 flammability rating
Applications
- Power distribution in industrial equipment
- Server and storage device power interfaces
- Communication infrastructure power connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, contact plating thickness, and termination style. Ensure the selected variant matches the required board layout and current carrying capacity for the target application environment.
Selection Notes
Select this component for high-current power delivery requiring a 4.2 mm spacing. Confirm that the 9 A rating aligns with the circuit requirements. Verify compatibility with mating sockets from the same Minitek Power4.2 family to ensure proper mechanical engagement and electrical continuity.
Part Context
This part belongs to the Minitek Power4.2 line, designed for robust power-to-board connections. The series offers various position counts and termination options, providing flexibility for different PCB layouts while maintaining consistent electrical performance and mechanical reliability across the product family.
Replacement Considerations
Compatible substitutes include other 20-position, 4.2 mm pitch dual-row headers from the Minitek Power4.2 series, such as the 10127820-2024LCLF or 10127820-2022GLF, provided they match the vertical orientation and gold contact specifications.
