Product Detailed Parameters
- Description：CONN HEADER VERT 24POS 4.2MM
- Series：Minitek® Pwr 4.2
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：80.0µin (2.03µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

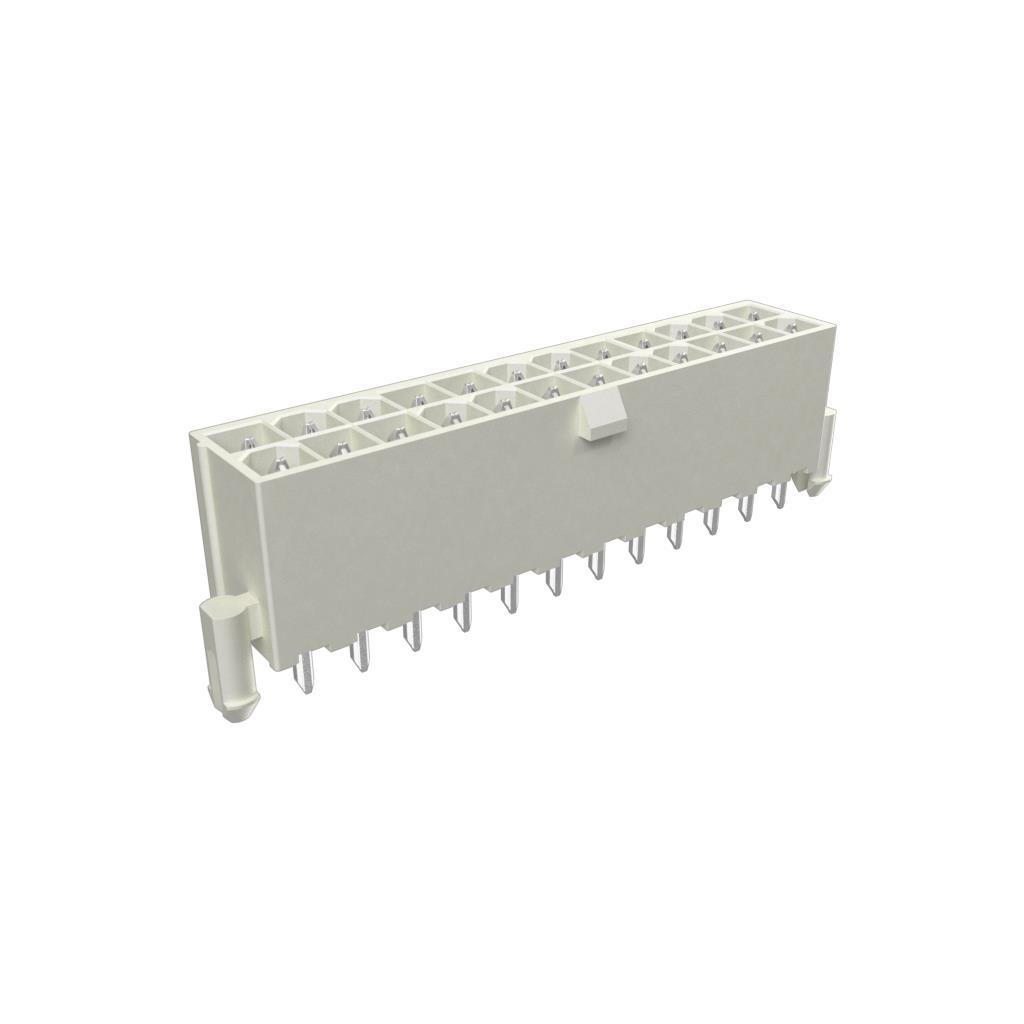

The Amphenol ICC (FCI) part number 10127820-2422PLF is a Minitek Power 4.2 series power-to-board header connector. It features a vertical through-hole mounting style with a 4.2 mm pitch and 24 positions arranged in a dual-row configuration. The contacts are constructed from brass and finished with a tin plating to ensure reliable electrical conductivity. Designed for robust power distribution, this component supports an operating temperature range from -40°C to +105°C and maintains an insulation resistance of 1 GOhms.
Feature Summary
- Vertical through-hole design for secure board integration
- Dual-row arrangement accommodating 24 contact positions
- Tin-plated brass contacts for durable electrical performance
Applications
- Power distribution in server systems
- Energy supply connections in storage devices
- Power interfaces in communication equipment
Procurement Notes
Verify the specific contact plating finish against project requirements, as datasheet references indicate variations between tin and gold options within this product family. Confirm that the vertical through-hole form factor aligns with the target PCB assembly process and spatial constraints before finalizing procurement decisions.
Selection Notes
Select this component when a high-current power interface with a 4.2 mm spacing is required. Ensure the application environment remains within the specified -40°C to +105°C operational limits. Verify that the tin-plated contact material meets the corrosion resistance and mating cycle expectations for the intended deployment scenario.
Part Context
This connector belongs to the Minitek Power 4.2 series, engineered for demanding power delivery applications. The series provides reliable interconnection solutions for infrastructure hardware, supporting stable power transmission in compact form factors suitable for modern electronic system architectures.
Replacement Considerations
Cross-reference with other Minitek Power 4.2 headers sharing identical 24-position dual-row specifications. Ensure mechanical compatibility and electrical ratings match before substituting.
