10127820-2424LF

Overview

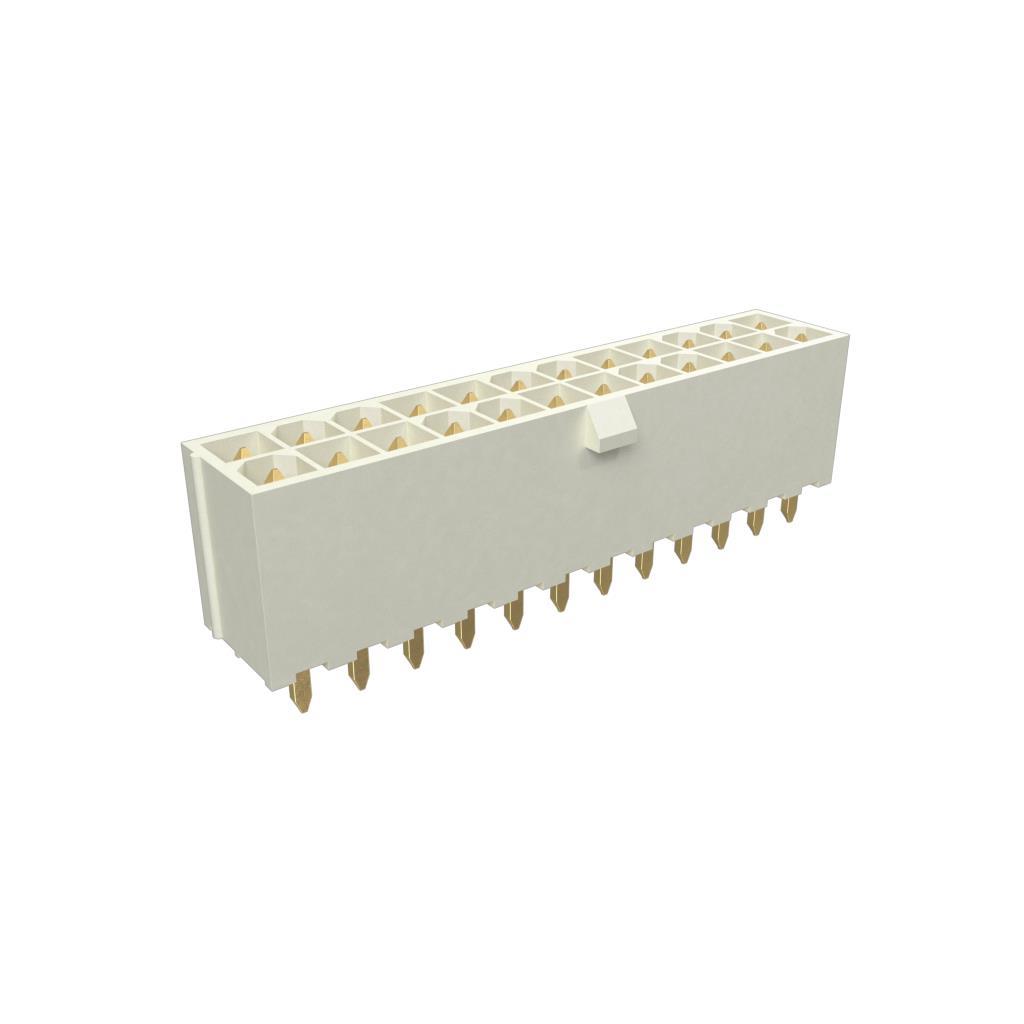

The Amphenol ICC (FCI) 10127820-2424LF is a Minitek Pwr 4.2 series power connector designed for board-to-board applications. It features a double-row vertical header with 24 positions and a 4.2 mm pitch. The contacts are constructed from brass with a 30-microinch gold plating to ensure reliable conductivity. Rated for 9 A current, the component operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.

Feature Summary

• Double-row vertical header configuration for high-density power distribution
• Gold-plated brass contacts for enhanced corrosion resistance and signal integrity
• Minitek Pwr 4.2 series design optimized for robust board-to-board connections

Applications

• Industrial control systems requiring reliable power interfaces
• Telecommunications infrastructure equipment
• Server and storage system power distribution boards

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and material specifications. Ensure that the selected variant matches the required current rating and thermal performance for the target application environment before finalizing procurement orders.

Selection Notes

Select this component when a 4.2 mm pitch is required for high-current power delivery in vertical configurations. Consider the 9 A rating and operating temperature limits to ensure compatibility with the system's thermal management strategy and electrical load requirements.

Part Context

This part belongs to the Minitek Pwr 4.2 family, which provides standardized solutions for power interconnects. The series offers various position counts and packaging options to support diverse board layout needs while maintaining consistent mechanical and electrical performance standards across the product line.

Replacement Considerations

Cross-reference with other Minitek Pwr 4.2 variants such as 10127820-2422LF or 10127820-2424LCLF for potential substitutes. Verify that alternative part numbers match the exact pin count, pitch, and plating specifications to maintain mechanical fit and electrical continuity.
