10127820-2424PLF

Overview

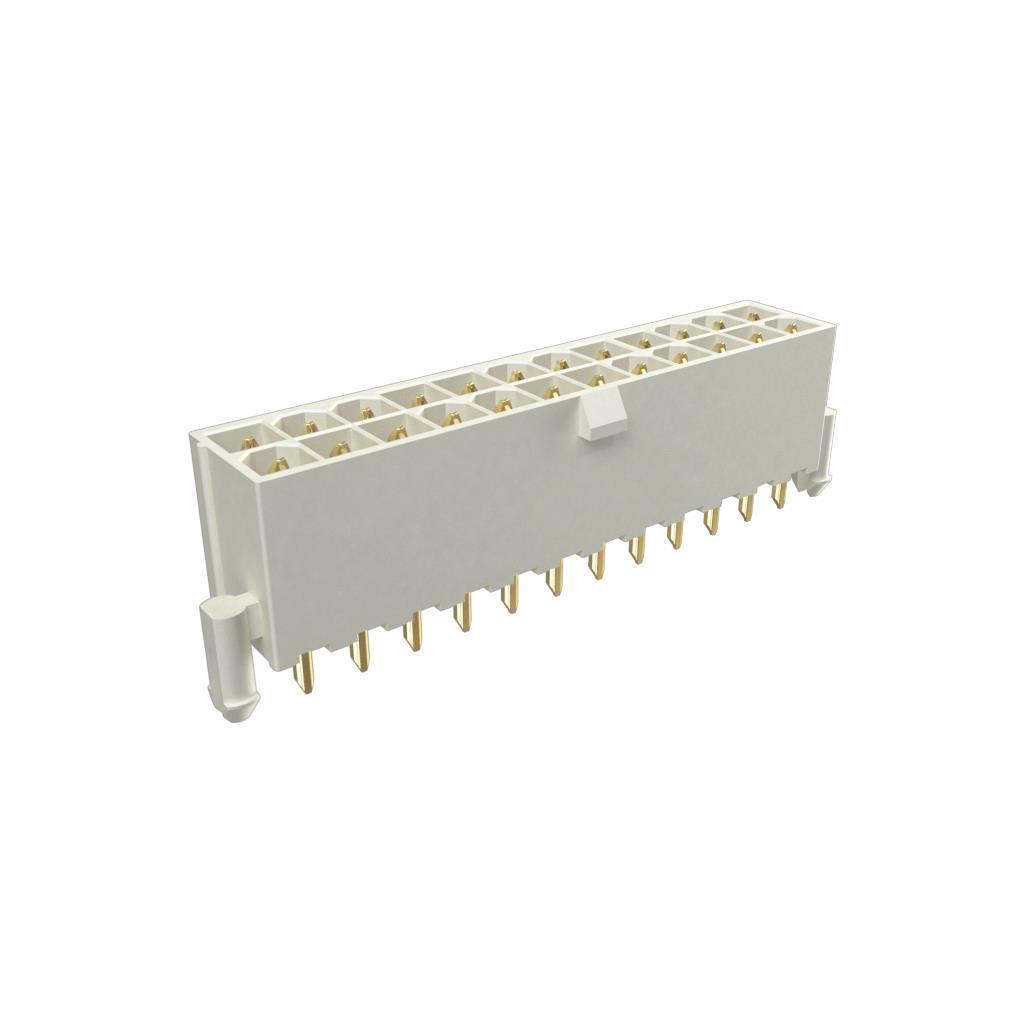

The Amphenol ICC (FCI) part number 10127820-2424PLF is a Minitek Pwr 4.2 power-to-board connector system component. It features a double-row vertical header with 24 positions and a 4.2 mm contact pitch. The contacts are constructed from brass and finished with a gold plating thickness of 30 microinches. Designed for surface mount installation, this connector supports an operating temperature range from -40°C to +105°C. It exhibits an insulation resistance of 1 GOhm and meets UL94 V-0 material flammability ratings. The natural-colored housing ensures visual identification while maintaining structural integrity in industrial environments.

Feature Summary

• Double-row vertical header configuration designed for power distribution applications
• Gold-plated brass contacts ensure reliable electrical conductivity and corrosion resistance
• High thermal stability rated for operation up to +105°C
• UL94 V-0 flammability rating for enhanced safety compliance

Applications

• Industrial instrumentation systems
• Data communication equipment
• Military electronic assemblies
• Consumer electronics power interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to confirm exact pin count, plating specifications, and packaging type. Ensure compatibility with mating receptacles within the Minitek Pwr 4.2 series. Confirm that the vertical mounting angle aligns with the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a high-current power interface with a 4.2 mm pitch is required. The double-row design maximizes power capacity within a compact footprint. Consider the vertical orientation for direct board-to-board or cable-to-board connections where space efficiency is critical. Validate thermal performance requirements against the specified -40°C to +105°C operational range.

Part Context

This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), a specialized line for power distribution. The series is engineered for robust performance in demanding sectors including industrial automation, data centers, and military applications. The 4.2 mm pitch allows for higher current carrying capabilities compared to smaller pitch systems, making it suitable for primary power routing on circuit boards.

Replacement Considerations

Direct substitutes must match the 24-position count, 4.2 mm pitch, and double-row vertical header format. Verify that any alternative component maintains identical gold plating thickness and brass contact material to ensure equivalent electrical and mechanical performance.
