10127949-001LF

Overview

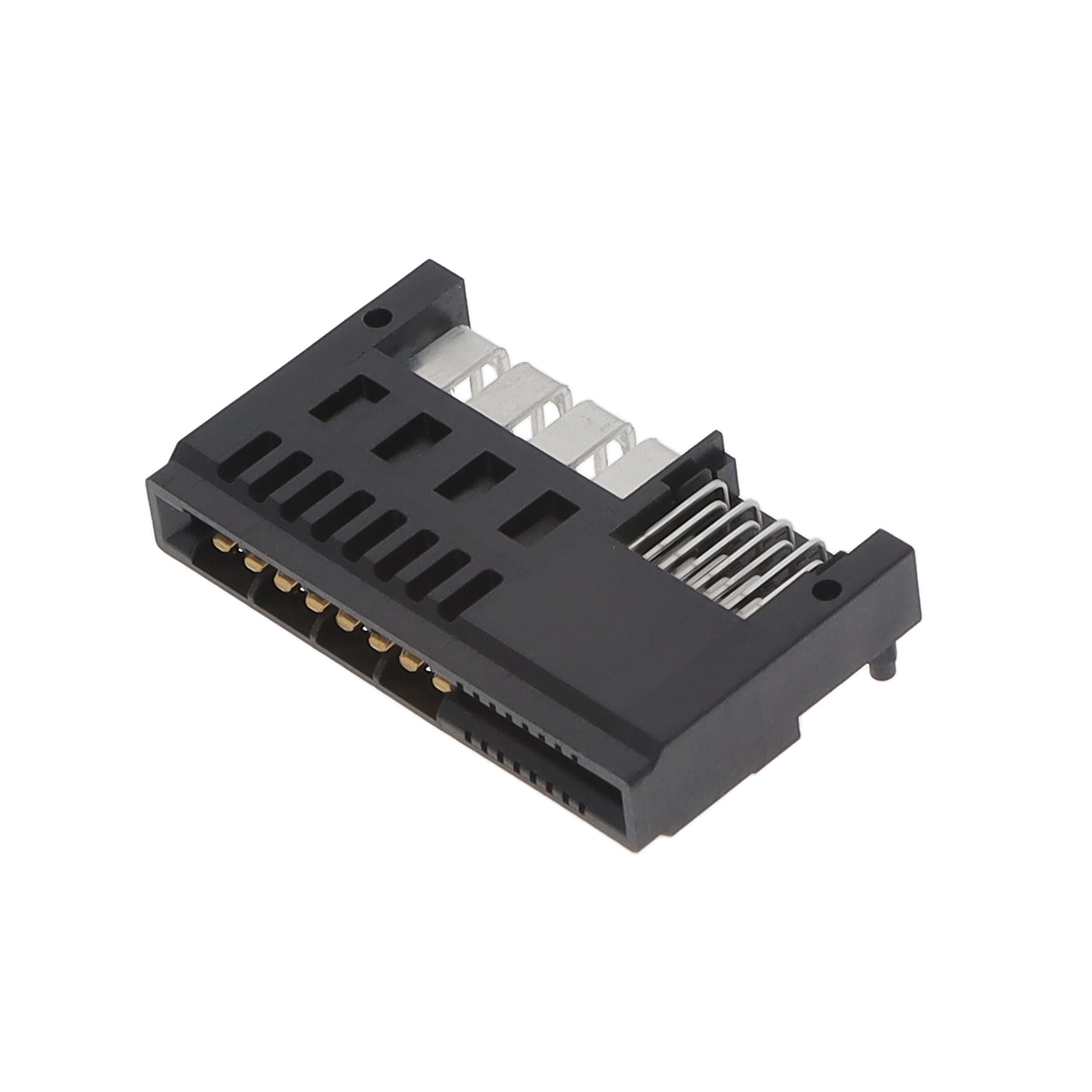

The Amphenol ICC (FCI) 10127949-001LF is a dual-edge female connector designed for board-to-board power and signal applications. It features a 32-position configuration, comprising 16 power contacts and 16 signal contacts. The connector utilizes a 1.27 mm pitch and supports right-angle through-hole solder termination. Constructed with gold-plated contacts and black GXT™ housing, it ensures reliable electrical performance in high-density electronic assemblies.

Feature Summary

• Dual-edge design accommodating both power and signal connections within a single interface
• Gold-plated contact surfaces to ensure low contact resistance and corrosion resistance
• Right-angle mounting orientation optimized for space-constrained PCB layouts

Applications

• High-density server backplanes requiring mixed signal and power routing
• Industrial control systems utilizing edgeboard interconnects
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific suffix and plating thickness against the official datasheet to confirm compliance with RoHS standards and material specifications. Ensure that the ordering documentation explicitly references the full part number to distinguish from similar variants within the MinitekPwr family. Confirm compatibility with mating card edge thicknesses prior to procurement.

Selection Notes

Select this component when a dual-edge solution is required to consolidate power and signal lines on a single connector footprint. Evaluate the mechanical retention requirements of the right-angle through-hole style against the target PCB assembly process. Consider the 1.27 mm pitch constraints relative to adjacent component placement and trace spacing rules.

Part Context

This component belongs to the MinitekPwr series by Amphenol ICC (FCI), which specializes in robust power and mixed-signal interconnect solutions. The series is engineered for demanding environments, offering high current carrying capabilities alongside precise signal integrity. The 10127949-001LF represents a specific configuration within this lineup, focusing on dual-edge board connectivity.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with existing mating connectors before considering alternative sources.
