10128241-112Y0LF

Description：CONN PCI EXP FMALE 98POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:8f8a75670e39 Category: Edgeboard Connectors Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN PCI EXP FMALE 98POS 0.039
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：98
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp
Mounting Type：Surface Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-

Download product information

10128241-112Y0LF

Overview

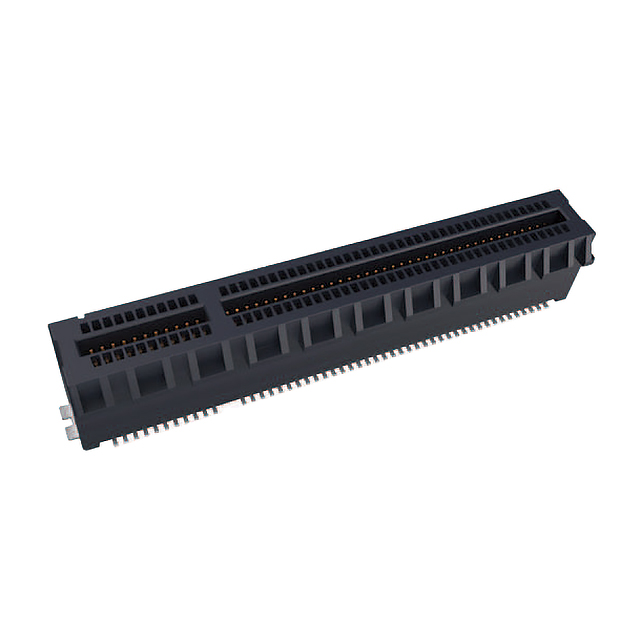

The Amphenol ICC (FCI) 10128241-112Y0LF is a PCI Express vertical card edge connector designed for high-density applications. It features 98 positions with a 1mm (0.039 inch) pitch, ensuring precise signal integrity for modern computing architectures. The component utilizes gold-plated copper alloy contacts to provide reliable electrical performance and corrosion resistance over extended operational cycles. Insulation is constructed from black thermoplastic material rated for UL94 V-0 flammability. This surface-mount header supports solder termination, facilitating automated assembly processes in PCB manufacturing environments.

Feature Summary

Vertical card edge interface optimized for PCI Express signaling requirements
Gold-plated contact finish ensures stable electrical conductivity
High-density 1mm pitch accommodates compact board layouts

Applications

PCI Express expansion cards
High-performance computing motherboards
Server backplane interconnects

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct configuration. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer. Ensure storage conditions meet moisture sensitivity level requirements prior to reflow soldering to maintain component reliability.

Selection Notes

Select this connector when a vertical mounting solution is required for PCI Express interfaces. The 1mm pitch offers higher density compared to standard 2.54mm options. Verify that the mating edge card thickness aligns with the connector's mechanical specifications. Consider the surface-mount footprint constraints during the PCB layout phase to ensure adequate clearance for solder joints.

Part Context

This component belongs to the Amphenol FCI portfolio of interconnect solutions. Amphenol acquired FCI to expand its capabilities in high-speed data transmission and power management. The product line supports various industrial and commercial electronic markets requiring robust connectivity.
