Product Detailed Parameters
- Description：CONN PCI EXP FMALE 164POS 0.039
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：164
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：15.0µin (0.38µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-
Download product information
Overview

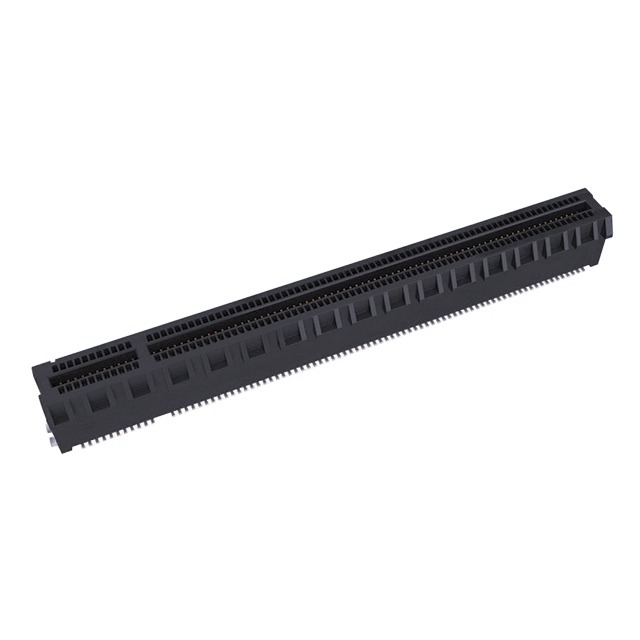

The Amphenol ICC (FCI) part number 10128241-123Y0LF is a PCI Express female edgeboard connector designed for high-speed data transmission applications. This component features 164 positions with a contact pitch of 0.039 inches (1.00mm). The housing and actuator are constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, ensuring structural integrity and thermal stability. The contacts are gold-plated to provide reliable conductivity and corrosion resistance over repeated mating cycles.
Feature Summary
- Gold-plated contacts ensure reliable signal integrity and low contact resistance
- Glass-fiber reinforced PPS housing provides high thermal stability and mechanical strength
- Zero insertion force design facilitates easy board integration
Applications
- PCI Express expansion cards
- High-performance computing motherboards
- Industrial control systems requiring robust edge connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with standard PCB footprints and check for any recent updates to RoHS or REACH compliance status before finalizing procurement orders.
Selection Notes
Select this connector when a 164-position female interface is required for PCI Express implementations. The 1.00mm pitch accommodates standard card edge designs. Verify that the operating temperature range and mechanical locking requirements align with the target system's environmental and structural constraints.
Part Context
This component belongs to the Amphenol ICC (FCI) family of edgeboard connectors, specifically engineered for PCI Express standards. It serves as a critical interconnect between the motherboard and peripheral cards, supporting high-bandwidth data transfer in modern electronic systems.
Replacement Considerations
Consult official substitution guides for equivalent parts with matching pin counts and pitch dimensions. Ensure any alternative maintains compatible electrical ratings and mechanical mounting characteristics.
