10128793-005RLF

Overview

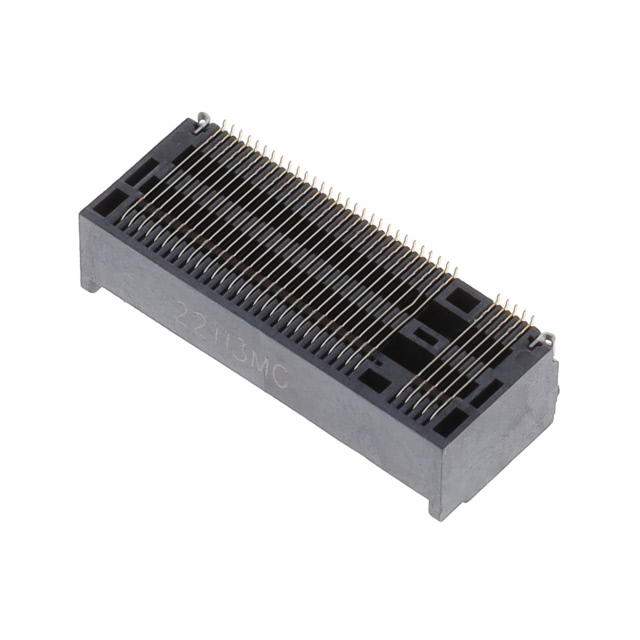

The Amphenol ICC (FCI) part number 10128793-005RLF is a PCIe M.2 connector featuring a Key B configuration with a 0.050mm pitch. It contains 67 positions and utilizes gold plating for contact surfaces. The component is designed for surface mount technology in right-angle orientations, supporting operation within a temperature range of -40°C to 80°C. Packaging is provided in tape and reel format.

Feature Summary

• Key B configuration for PCIe M.2 interface compatibility
• Zero insertion force design for reliable signal integrity
• Gold-plated contacts ensuring corrosion resistance

Applications

• M.2 SSD storage modules
• PCIe expansion cards
• Wireless communication modules

Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to ensure compatibility with current production standards. Confirm that the Key B designation matches the target application's pinout requirements. Check RoHS compliance status if operating in regulated environments. Ensure the right-angle mounting orientation fits the mechanical constraints of the host PCB design before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-density interconnect is required for M.2 form factor devices. The 0.050mm pitch allows for compact board layouts. Consider the right-angle footprint for space-constrained vertical stacking applications. Evaluate thermal performance limits relative to the system's operational environment to ensure long-term reliability under load conditions.

Part Context

This connector belongs to the Amphenol ICC (FCI) portfolio of high-speed interconnect solutions. It supports the evolution of portable computing and data storage architectures. The series emphasizes signal integrity and mechanical durability for modern electronic devices requiring robust connectivity.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
