10128798-005RLF

Overview

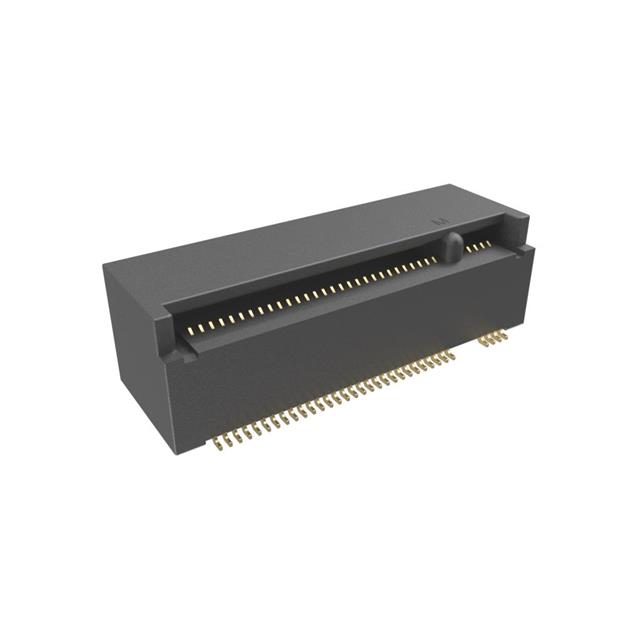

The Amphenol ICC (FCI) part number 10128798-005RLF is a right-angle edgeboard connector designed for surface mount technology. It features a dual-row female configuration with 67 contacts and a precise 0.5 mm pitch. The connector utilizes copper alloy contacts finished with gold plating to ensure reliable signal transmission in high-density applications. Rated for 50V, this component operates within a temperature range of -40°C to +80°C. Its right-angle orientation facilitates efficient board-to-board interconnections while optimizing vertical space constraints in compact electronic assemblies.

Feature Summary

• Right-angle surface mount design for optimized spatial efficiency
• Dual-row female contact configuration ensuring stable connectivity
• Gold-plated copper alloy contacts for enhanced conductivity

Applications

• High-density board-to-board interconnects
• Compact consumer electronics assemblies
• Industrial control modules requiring right-angle routing

Procurement Notes

Verify the specific contact count and pitch against the official datasheet before procurement, as variations exist within the 10128798 series. Confirm that the right-angle surface mount form factor aligns with your PCB layout requirements. Ensure compatibility with automated pick-and-place equipment due to the specific package style. Cross-reference the operating temperature range with your system's thermal environment to guarantee long-term reliability under load conditions.

Selection Notes

Select this component when space-constrained designs require a right-angle interface between adjacent circuit boards. The 0.5 mm pitch makes it suitable for high-pin-count applications where signal density is critical. Consider the surface mount profile for automated assembly processes. Evaluate the 50V rating against your system's electrical requirements to ensure adequate safety margins during operation.

Part Context

This component belongs to the Amphenol ICC edgeboard connector portfolio, which specializes in high-density interconnect solutions. The manufacturer leverages extensive experience in precision connector manufacturing to deliver reliable performance in demanding environments. This specific model represents the company's focus on miniaturization and robust signal integrity for modern electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available.
